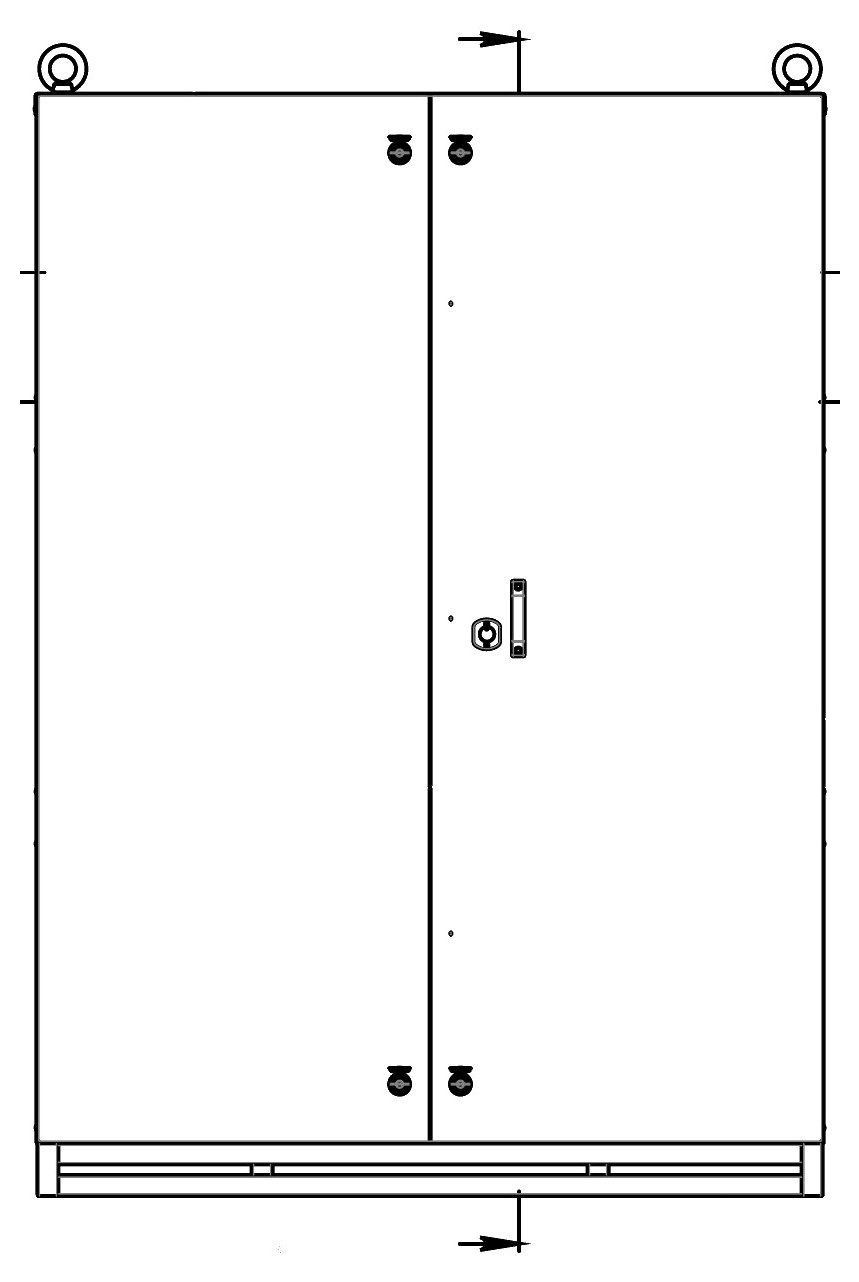

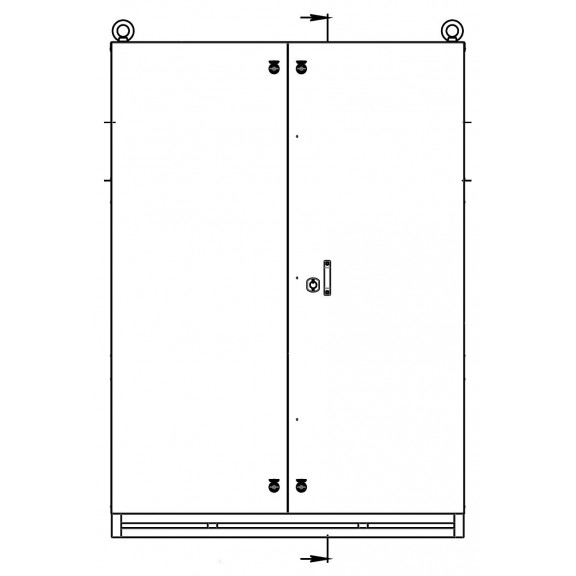

Sfera ShU 2000×1500×1000 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 2000×1500×1000 mm cabinet allows several mounting panels or DIN rail sections with a total length of over 4 metres to be placed, which is enough to install a main breaker, metering devices, a group of outgoing protection lines and switching devices in one body. With such a width and depth the equipment can be arranged in two or three rows while keeping aisles for maintenance and routing cable runs through glands.

Mineral wool insulation 50 mm and IP54 protection keep electrical equipment working when taken outside heated premises. Floor mounting on a plinth or supports simplifies installing a large cabinet where it cannot be placed on a wall or in a switchroom. Additional options – heating, ventilation, thermostat, canopy, inspection window – are installed to order for a specific task.

Where it is used:

• panel main distribution devices (MDDs) for apartment buildings and commercial facilities;
• electricity metering points housing several meters and current transformers;
• distribution points for outdoor lighting of territories and streets;
• automation and control cabinets for industrial sites and production lines;
• power distribution cabinets for power industry facilities and substations;
• power supply system equipment for construction sites and temporary facilities.
