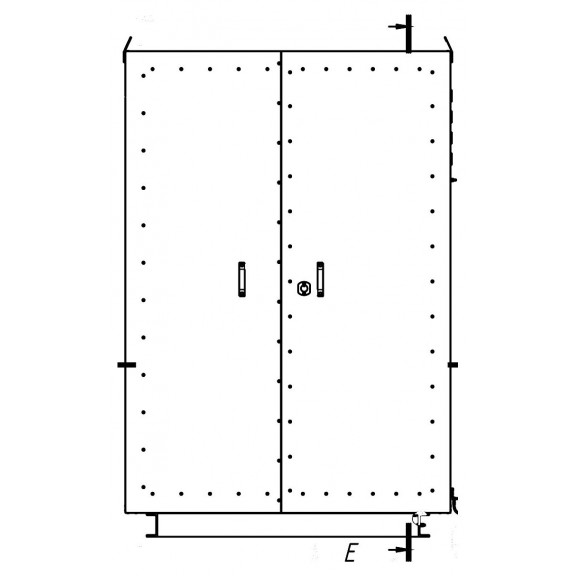

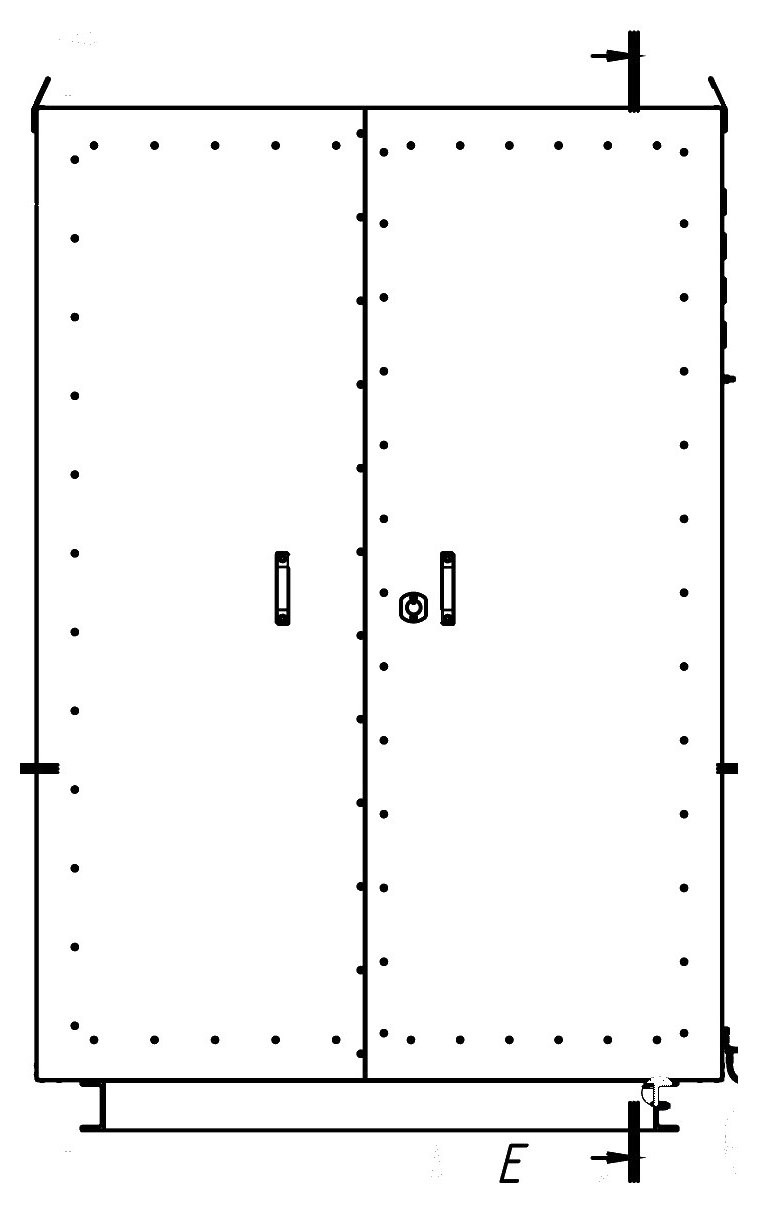

Sfera ShU 2000×1300×850 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 2000×1300×850 mm allow several rows of modular equipment, power breakers, metering devices, controllers and terminal blocks to be placed inside, separated by zones and functional groups. The mounting panel and DIN rail make it possible to assemble a complex circuit in one body instead of installing several smaller cabinets, and the cable glands provide organised entry and exit of cables without breaking the seal.

Mineral wool insulation 50 mm and a gasket around the door perimeter maintain stable conditions for the electronics and switching equipment in outdoor installation. The wall mounting and IP54 protection make the cabinet convenient for points where there is no separate room for panel equipment, and the body, compact in area but roomy in height, saves space at the facility.

Where it is used:

• electricity metering and distribution nodes at industrial sites;
• automation of water supply and sewage systems;
• equipping communication facilities and telecommunication lines;
• control of pumping stations and boiler plants;
• housing equipment of outdoor lighting and power supply systems;
• automation panels at transport and road infrastructure facilities.
