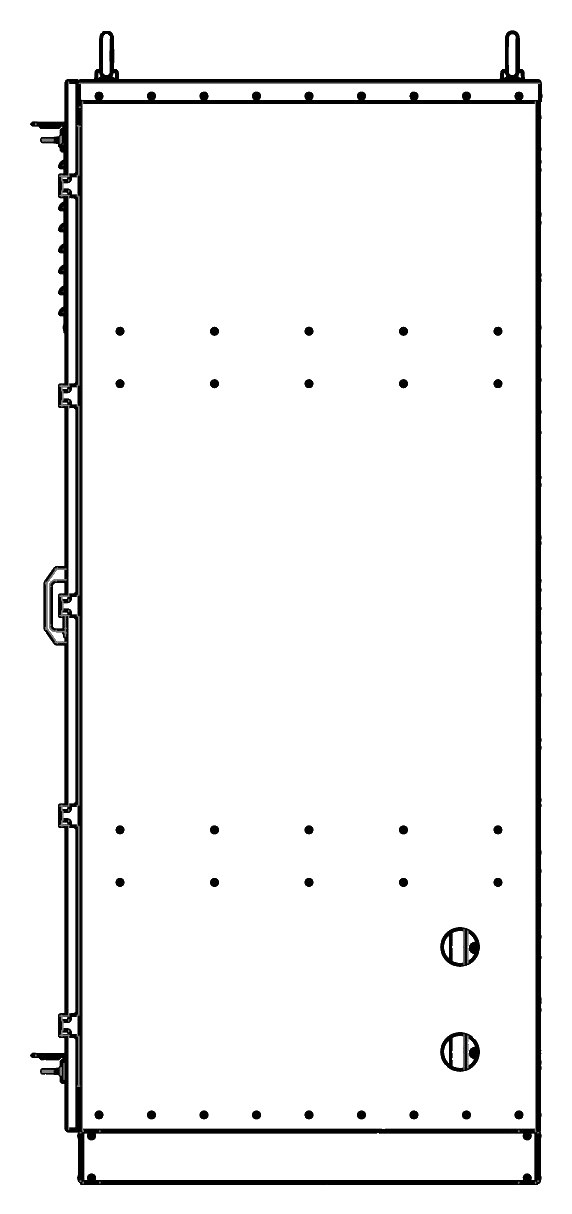

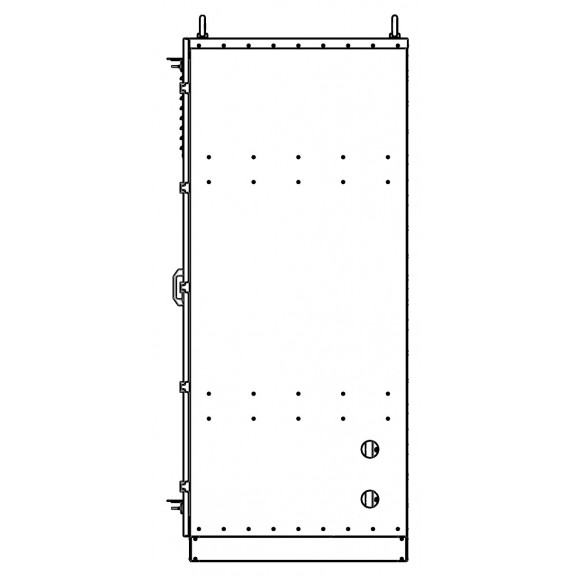

Sfera ShU 2000×1100×900 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 2000×1100×900 mm allow several mounting panels or DIN rails to be placed on two or three tiers, which gives space for service entrance, metering, distribution and automation at once. A cabinet of this volume (≈1.98 m³) holds main distribution devices, automation panels with a reserve for connecting cabinet options, and cable entries through glands from several sides.

The floor installation format on a plinth or supports is convenient where the equipment is operated on an open site or under a canopy and requires protection from dust and moisture to IP54. Body insulation reduces the effect of temperature changes on the electronics, and the increased depth of 900 mm makes maintenance easier – the installer gets free access to equipment installed in several rows.

Where it is used:

• power industry – metering and distribution nodes at substations and service entrances;
• municipal utilities – panel equipment of pumping stations and boiler houses;
• industry – automation cabinets for process lines;
• telecommunications – housing power and switching equipment at communication sites;
• road infrastructure – control panels for lighting and traffic light facilities;
• construction – temporary and permanent distribution points at sites.
