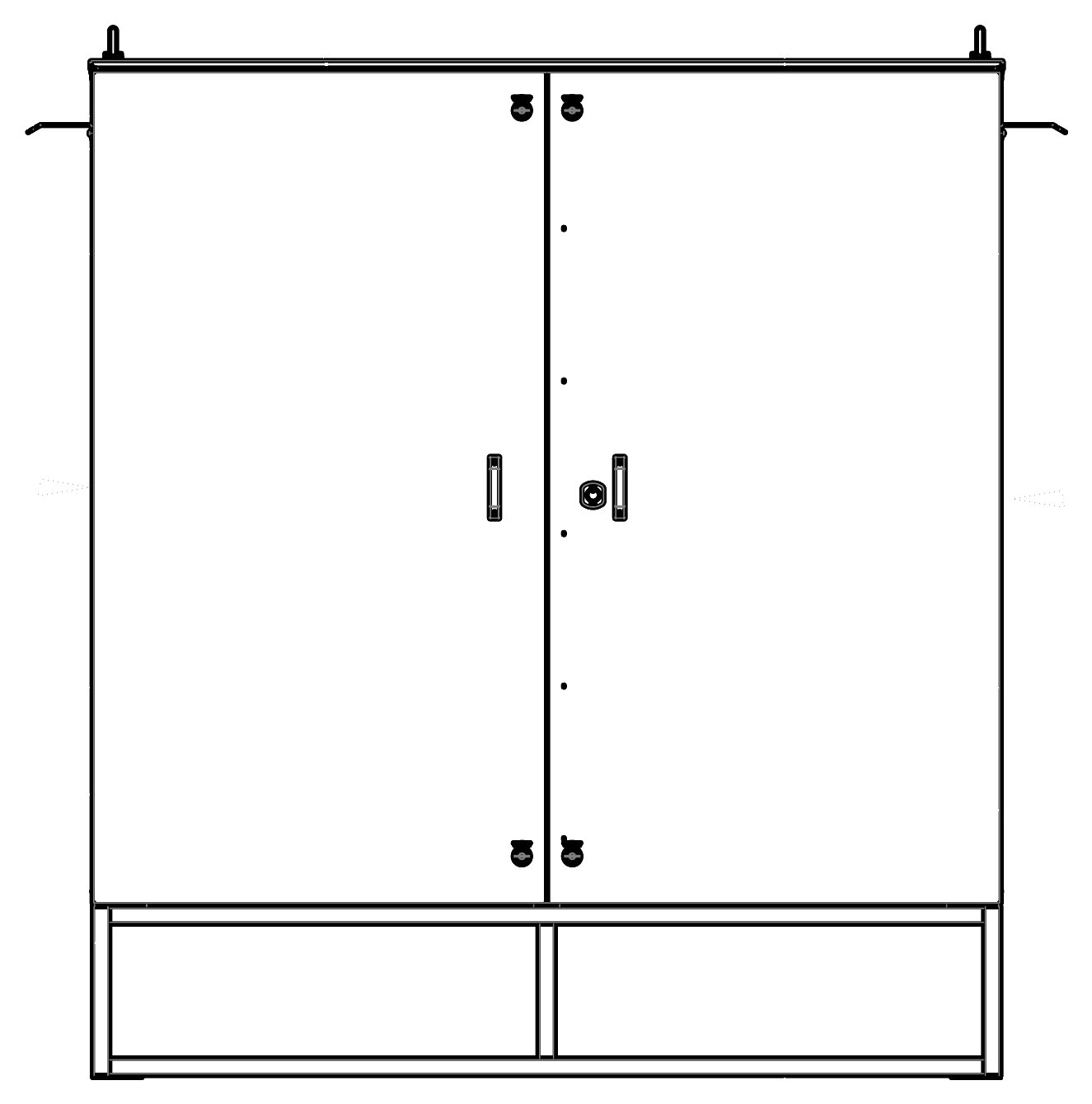

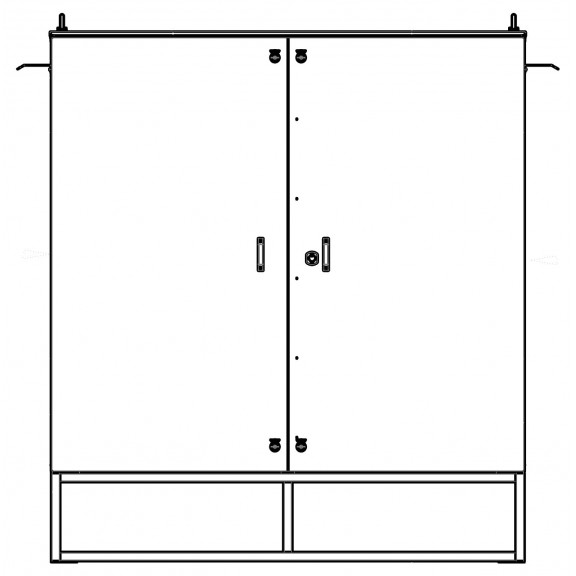

Sfera ShU 1950×2100×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

With a width of 2100 mm and a height of 1950 mm the body allows several mounting panels or DIN rails to be installed in a row, dividing the space into independent functional zones – for example, service entrance and metering, feeder automation and terminal blocks for external connections. The depth of 600 mm is sufficient for devices with a larger projection and for laying cable bundles without crowding. This body volume is designed for panels with a large number of modular positions, where one narrow cabinet no longer holds all the switching.

The cabinet is placed on a plinth or supports on open sites and in places without a permanent building. Body insulation and a gasketed door reduce the effect of temperature changes and precipitation on the installed equipment, and the cable glands provide organised entry of external cables. The wide floor-standing format is convenient where a multi-section panel needs to be housed without building a separate building or extension.

Where it is used:

• main distribution boards at the boundary of network balance-sheet responsibility;
• electricity metering panels for a group of consumers;
• automation and control cabinets for pumping and ventilation units;
• distribution points of street and architectural lighting;
• communication nodes and low-current panels housed together with the power part;
• switching cabinets for temporary and mobile power installations.
