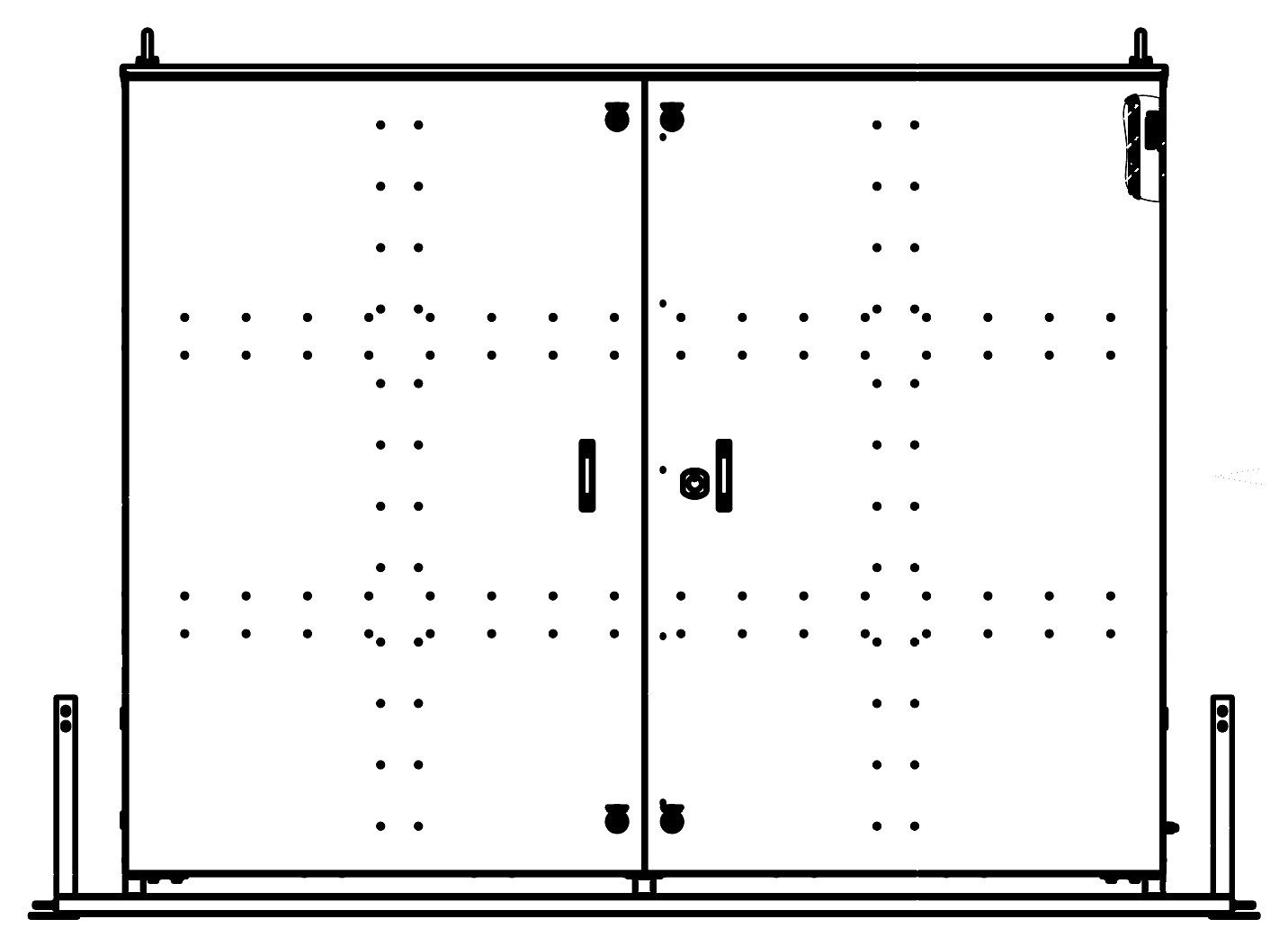

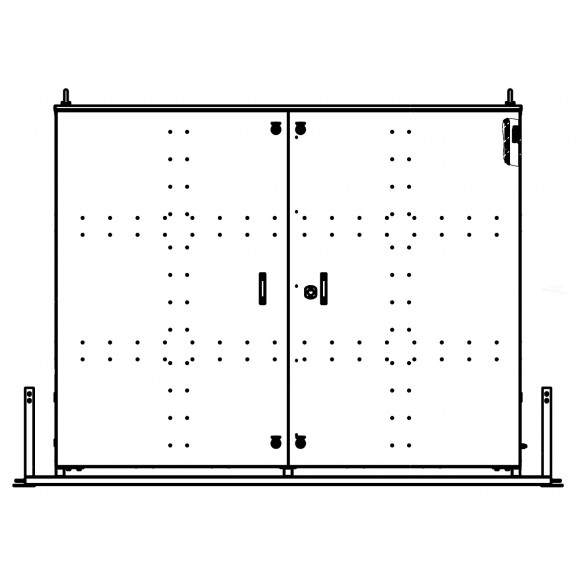

Sfera ShU 1800×2200×730 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1800×2200×730 mm cabinet holds a mounting panel or DIN rails for several dozen modular breakers, power and low-current panels, main distribution devices, as well as automation and monitoring equipment on separate shelves or sub-panels. The width of 2200 mm allows the equipment to be spread across functional zones – service entrance, distribution, automation – while keeping convenient access to each group during maintenance.

Mineral wool 50 mm and a gasketed door protect the contents from dust, moisture and temperature changes with floor installation outdoors. This format is convenient where equipment of different types needs to be combined in one body instead of installing several separate cabinets on the site, with maintenance access organised through a single door.

Where it is used:

• metering and distribution panels at substations and service-entrance nodes;
• complete automation and dispatching systems for utility networks;
• communication nodes and telecommunication equipment of base stations;
• control stations for pumping and ventilation equipment;
• automation cabinets of water supply systems and wastewater treatment plants;
• distribution points of industrial and municipal facilities.
