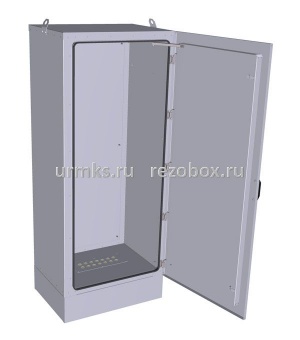

Sfera ShU-1775x800x600-2-2-IP55 cabinet

Name: Sfera ShU-1775x800x600-2-2-IP55 cabinet
Brand: Сфера
SKU: 739
Price: 54500 RUB
Availability: PreOrder

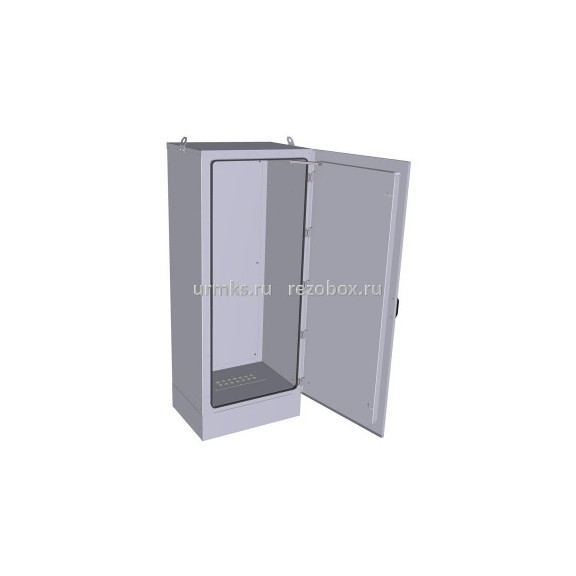

Sfera ShU-1775x800x600-2-2-IP55 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 54 500 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1775×800×600
Type	Insulated cabinet (ShU)
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP55

Body with overall dimensions (H×W×D) 1775*800*600 mm, protection class IP55, galvanised metal, front thickness 1,5 mm, inner 1,0 mm
Insulation – mineral wool, 50 mm thick
Grey polymer powder coating – RAL7035 textured finish
Door gasket
Oskar hinges
Galvanised mounting panel 1,5 mm
Triangular-key lock – 2 pcs
Pass-through plate 415×165 mm – 2 pcs
Plinth 200 mm high, polymer powder coating in black – RAL9005 textured finish
Packaging: bubble wrap + corrugated cardboard
