Sfera ShU-1660x800x600-1-2-IP54 cabinet

Name: Sfera ShU-1660x800x600-1-2-IP54 cabinet
Brand: Сфера
SKU: 741
Price: 55900 RUB
Availability: PreOrder

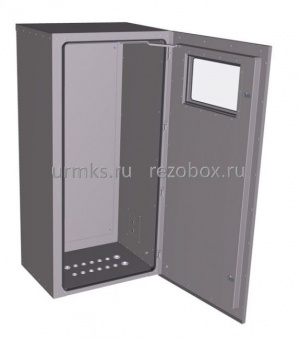

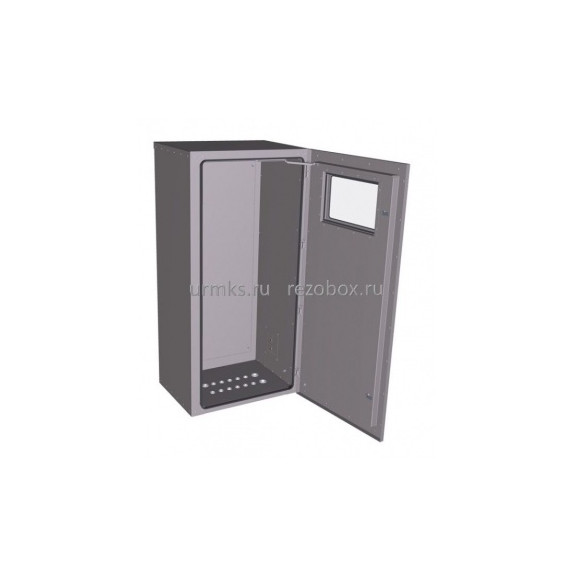

Sfera ShU-1660x800x600-1-2-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 55 900 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1660×800×600
Type	Insulated cabinet (ShU)
Body material	Black steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54

Body with overall dimensions (H×W×D) 1660*800*600 mm, protection class IP54, 08 ps metal, front thickness 1,5 mm, inner – 1,0 mm.
Door with a catch in the open position, 250×400 mm window and an opening handle – 1 pcs
Special eye bolt – 2 pcs;
Insulation – mineral wool, 50 mm thick
Polymer powder coating in Antique Silver
Door gasket
Oskar hinges
Mounting panel 1400×600 – 1 pcs
Triangular-key lock – 2 pcs
Louvre grille – 1 pcs
MG-25 cable gland for cable 13-18 mm – 1 pcs
MG-20 cable gland, cable diameter 9-14 IP68 – 11 pcs
MG-32 cable gland, cable diameter 16-24 mm IP68 – 2 pcs
Adapter bushing for MG-25 gland for cable 13-18 mm – 1 pcs
Adapter bushing for MG-22 gland for cable 16-24 mm – 2 pcs
Adapter bushing for MG-20 gland for cable – 11 pcs
Packaging: bubble wrap + corrugated cardboard + wooden crate
