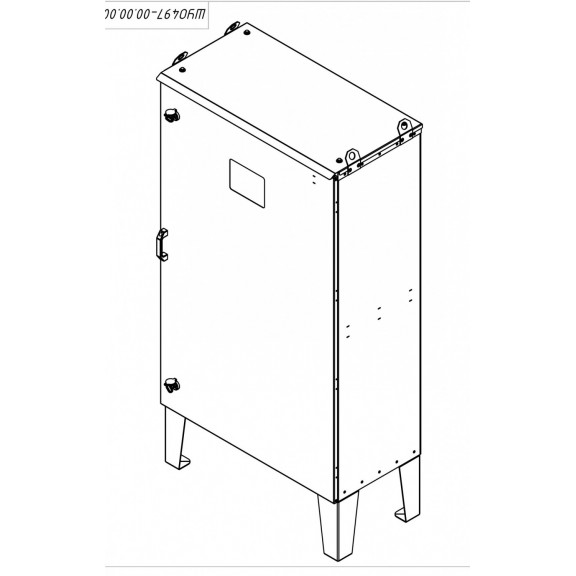

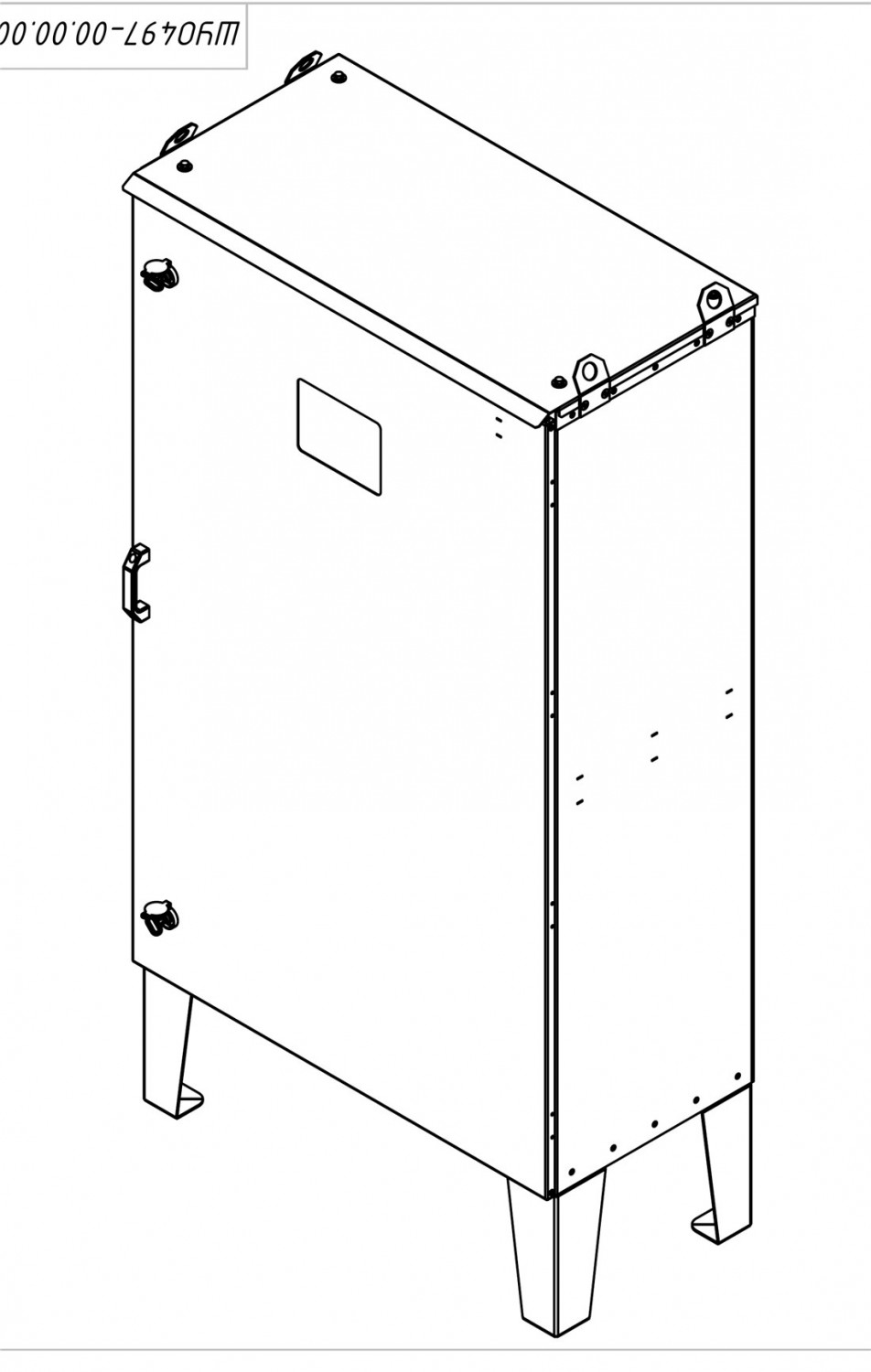

Sfera ShU 1640×1000×500 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1640×1000×500 mm cabinet holds several rows of DIN rails, panel devices, metering devices, terminal groups and switching equipment with room for routing cables through glands. This volume is suitable for assembling complex panels where equipment of several systems – power, measurement, low-current – is placed on one mounting panel.

The galvanised steel body with polymer powder coating and mineral wool thermal insulation keeps the equipment working when installed outdoors – on open sites, posts, walls of buildings and structures. The wall mounting simplifies installation without a foundation, and the door with a gasket and lock protects the contents from dust and moisture according to IP54.

Where it is used:

• electricity metering points at the boundaries of balance-sheet responsibility;
• automation and control panels for outdoor utility systems;
• switching and distribution cabinets at industrial sites;
• housing low-current and telecommunication equipment outdoors;
• control panels for lighting of streets, roads and territories;
• automation system equipment at utility and power facilities.
