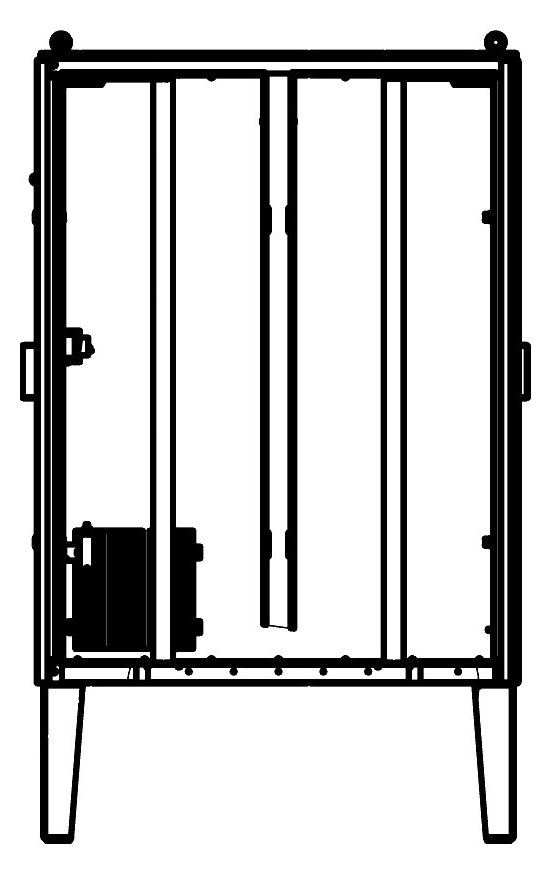

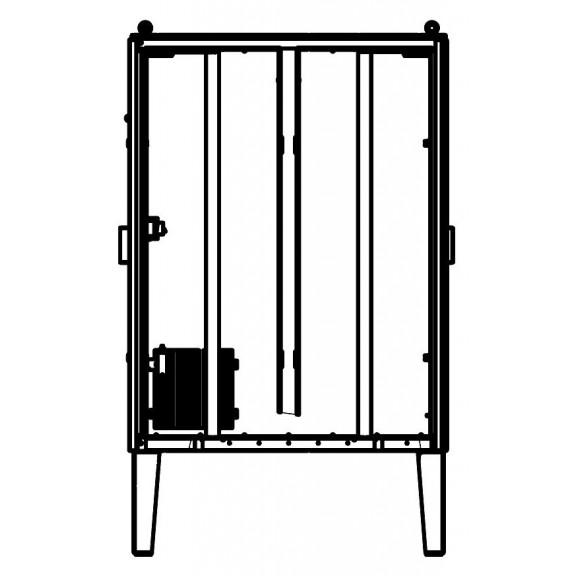

Sfera ShU 1600×1200×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1600×1200×600 mm allow several mounting panels or DIN rails to be placed inside with a wide range of equipment: main and distribution breakers, contactors, relays, terminal blocks, metering devices, as well as compact controllers and uninterruptible power supplies. This volume suits assemblies that combine the power and low-current parts in one body, which reduces the number of separate boxes at a facility.

The ShU version with thermal insulation and IP54 is intended for installation outside heated premises – on facades, posts, overpasses and open sites, where equipment is exposed to temperature changes and precipitation. The format is convenient because a large node can be serviced without moving part of the equipment into neighbouring cabinets, and the wall mounting saves space when there is no foundation or pedestal.

Where it is used:

• electricity metering and distribution points at outdoor power supply facilities;
• automation and telemechanics cabinets of water supply and sewage systems;
• control stations for lighting of streets, roads and territories;
• distribution points at industrial sites and in production areas;
• communication and process control system cabinets at power and pipeline transport facilities;
• security and video surveillance system equipment on open perimeters.
