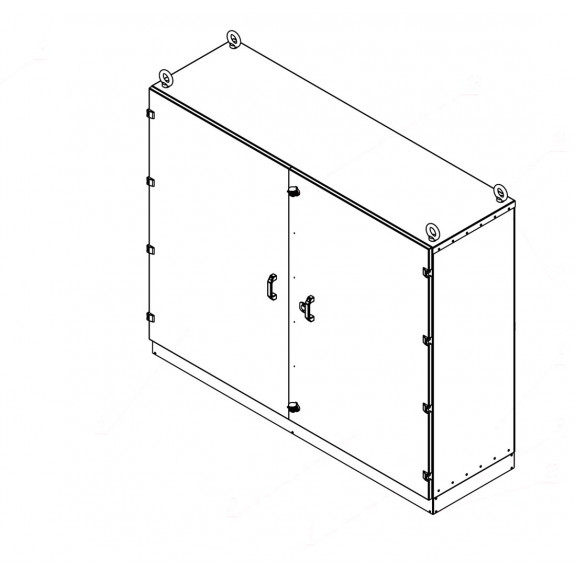

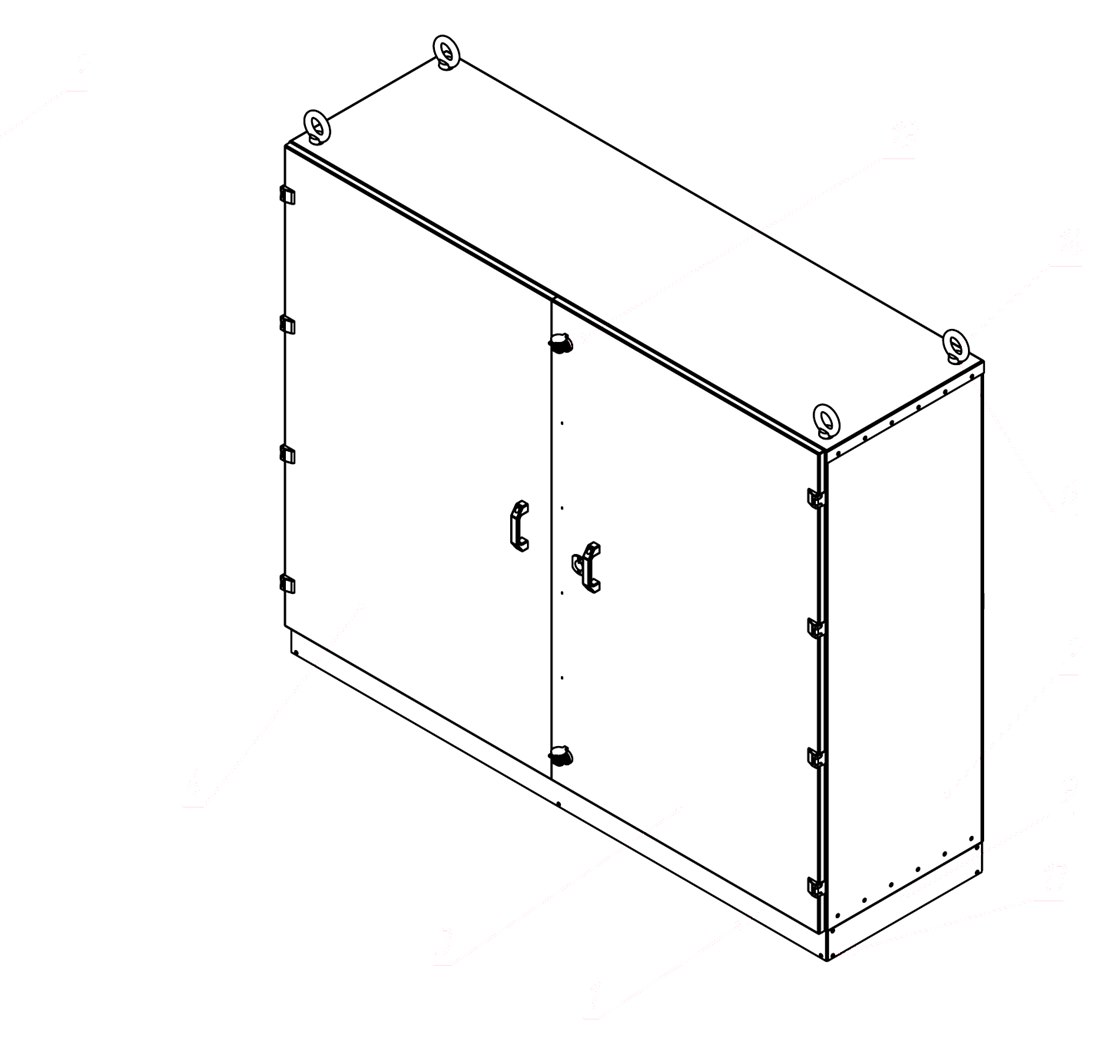

Sfera ShU 1550×2000×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1550×2000×600 mm and one spacious compartment allow several groups of equipment to be placed in the cabinet at once: main distribution boards, automation, metering devices, low-current communication panels or control units – divided across mounting panels and DIN rails. A width of 2000 mm makes it possible to put cable entries and switching in separate zones of the body without overloading the central part.

Mineral wool thermal insulation 50 mm thick and IP54 protection allow the cabinet to be installed on open sites and in places where protection from dust and water splashes is important. The wall mounting is convenient when installing on building walls, posts and steel structures without a foundation.

Where it is used:

• metering and distribution panels at facilities with a large number of outgoing lines;
• automation and telemechanics points of utility networks;
• communication and low-current equipment cabinets on outdoor sites;
• dispatch and control posts of control systems;
• main distribution boards for industrial and municipal facilities;
• housing battery and auxiliary units together with the main equipment.
