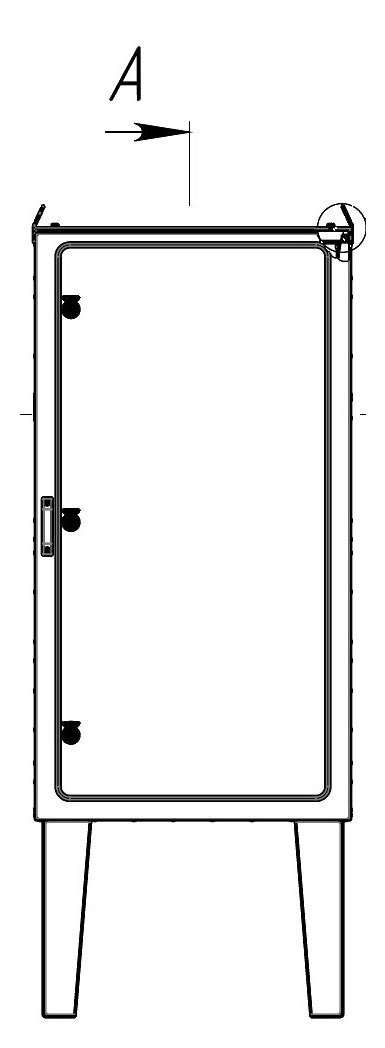

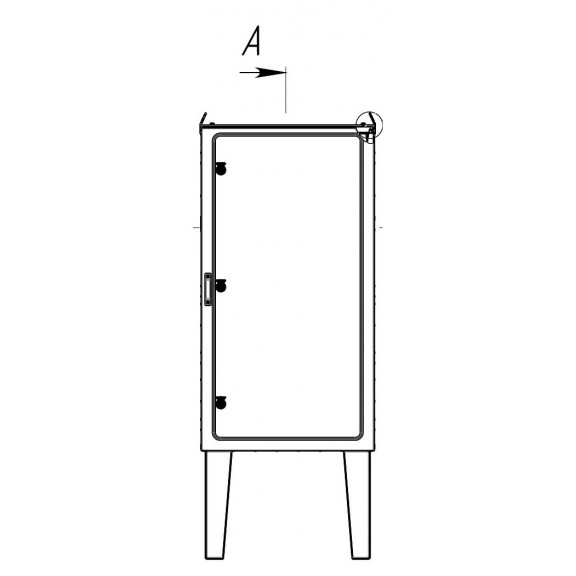

Sfera ShU 1500×800×620 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1500×800×620 mm allow group metering and distribution panels, main distribution device automation, communication equipment and controllers of dispatching systems to be housed in the cabinet. The internal space is designed for several rows of modular devices, terminal blocks and cable entries without overloading the mounting panel, and mineral wool 50 mm thick reduces freezing of the body in the cold season and reduces moisture condensation on the equipment.

The IP54 protection rating and gasketed door make the cabinet suitable for operation on open sites, next to building walls and on posts without additional shelter. The wall mounting method simplifies installation in tight conditions where putting floor-standing cabinets on a foundation is impractical, and the compact depth of 620 mm allows the body to be placed in technical niches and on structures of limited width.

Where it is used:

• outdoor electrical panel lines of 0,4 kV distribution networks;
• electricity metering points at the service entrance of buildings and structures;
• automation cabinets for outdoor and street lighting;
• housing communication and telemechanics equipment on posts and walls;
• switching nodes of video surveillance and dispatching systems;
• main distribution boards for facilities with limited installation space.
