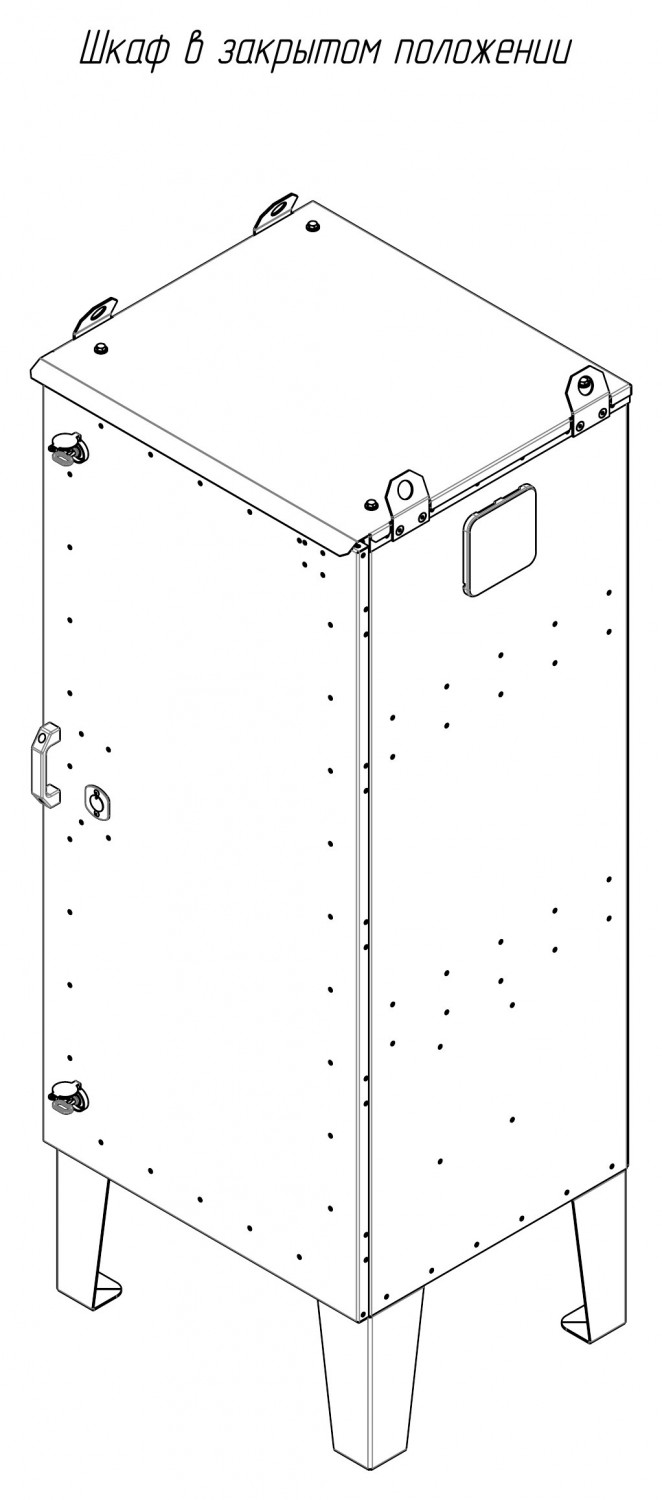

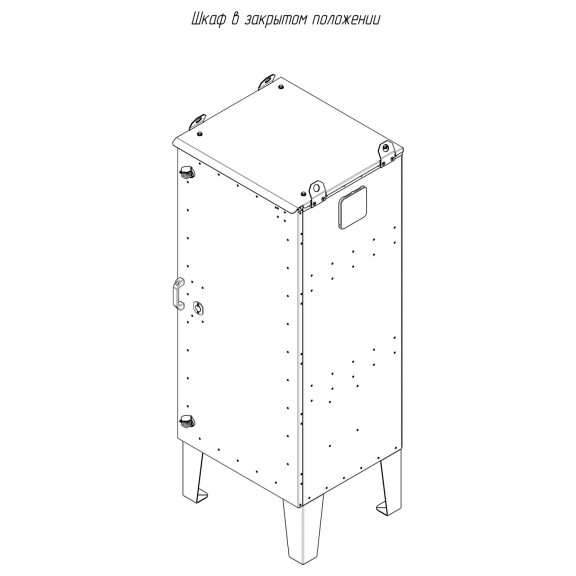

Sfera ShU 1500×700×600 IP55 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1500×700×600 mm and the wall mounting make the TShU-N565 cabinet suitable for installation on building walls, posts and steel structures without a foundation. The internal space of the body allows a mounting panel or DIN rail to be placed with circuit breakers, metering devices, terminal assemblies, controllers and other equipment of medium layout density, and cables to be brought in through glands.

The 50 mm mineral wool thermal insulation and the door sealed around its perimeter reduce heat loss and protect the equipment from dust and moisture (IP55) when working in the open air. This format is convenient where a separate switching or metering node is needed near a facility but there is no way to allocate a room for it.

Where it is used:

• electricity metering points on building facades and posts;
• distribution points of low-voltage outdoor networks;
• automation cabinets of outdoor lighting systems;
• control panels for pumping and ventilation equipment on open sites;
• housing instrumentation at industrial facilities;
• communication and low-current system cabinets for outdoor cable routes.
