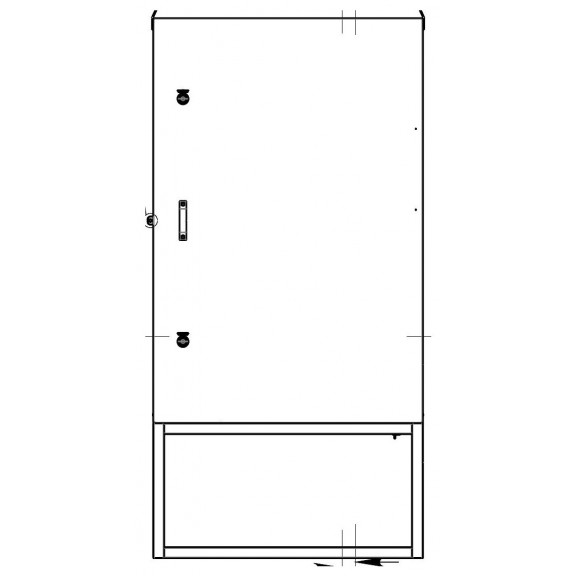

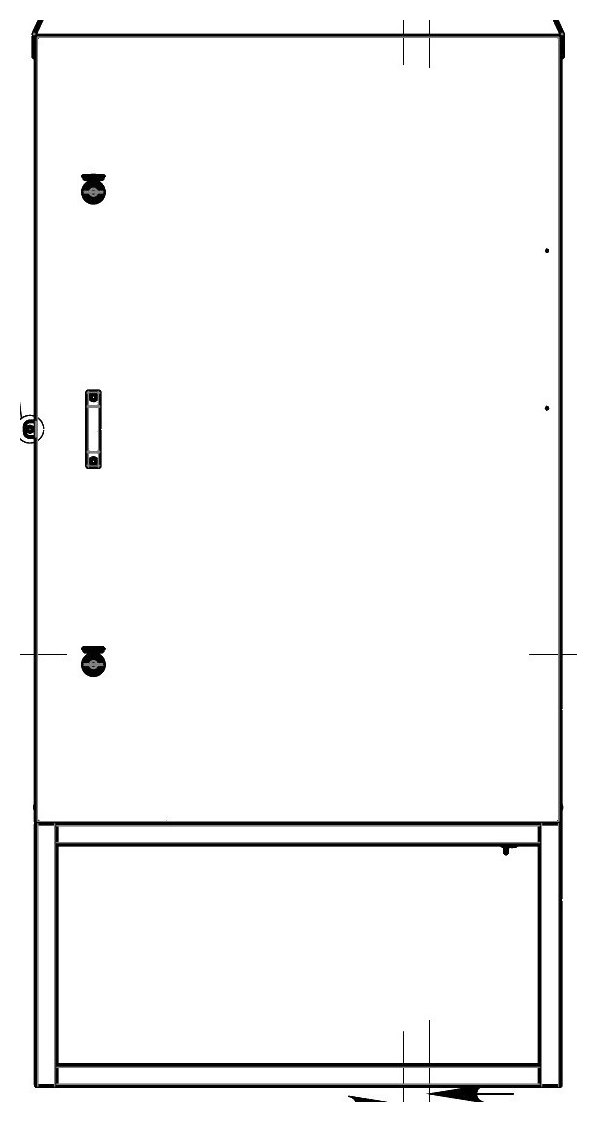

Sfera ShU 1500×1000×500 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1500×1000×500 mm cabinet allows two or three rows of DIN rails or several mounting panels with circuit breakers, meters, controllers and terminal blocks to be housed. With a width of 1000 mm the mounting panel holds equipment in 3–4 functional sections – for example, service entrance, metering, distribution and the low-current part in one body. The cable glands in the basic configuration provide organised entry of cable lines from different sides.

The cabinet is installed on a plinth or supports outdoors, where protection of the equipment from dust and moisture to class IP54 is required. The floor-standing body format is convenient with a large number of incoming cables and allows maintenance without dismantling neighbouring equipment. To order, the cabinet is equipped with heating, ventilation, a thermostat, a canopy and an inspection window.

Where it is used:

• distribution points of outdoor power grids with several groups of outgoing lines;
• electricity metering nodes for apartment buildings and commercial facilities;
• automation and dispatching panels for utility systems on sites with restricted access;
• housing communication and low-current system equipment together with the power part;
• lighting and ventilation control cabinets at production and warehouse territories;
• security and video surveillance system equipment at facilities with outdoor installation.
