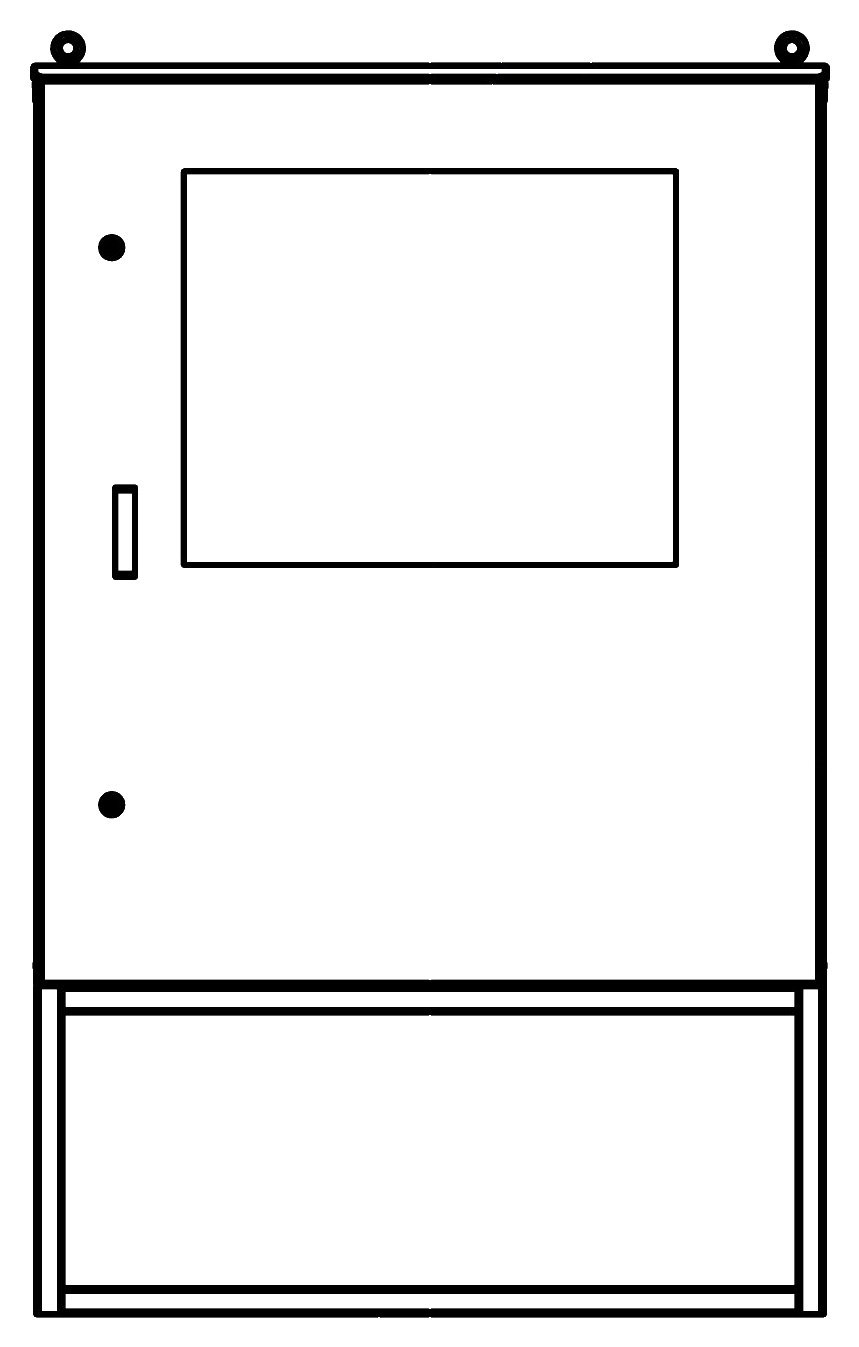

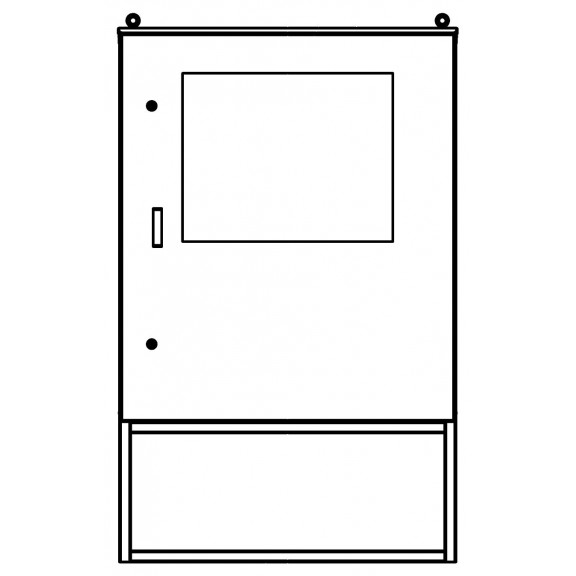

Sfera ShU 1400×1200×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1400×1200×600 mm provide sufficient area of the mounting panel and DIN rails to house several groups of circuit breakers, contactors, terminal blocks, metering devices and controllers while keeping free space for cable routing. This volume suits both power distribution panels and complex assemblies with several functional modules in one body.

The galvanised body with polymer powder coating and mineral wool thermal insulation 50 mm, a door with a gasket and cable glands allow the cabinet to be installed on open sites, overpasses, posts and building facades without additional shelter. The wall mounting makes it possible to install on existing structures without pouring a foundation, which is convenient when installation space is limited.

Where it is used:

• distribution panels of power supply systems at industrial and infrastructure facilities;
• automation and control cabinets for process equipment;
• electricity metering nodes at service entrances of buildings and structures;
• communication and telecommunication network equipment outdoors;
• control stations for pumping and ventilation units;
• housing instrumentation at industrial sites.
