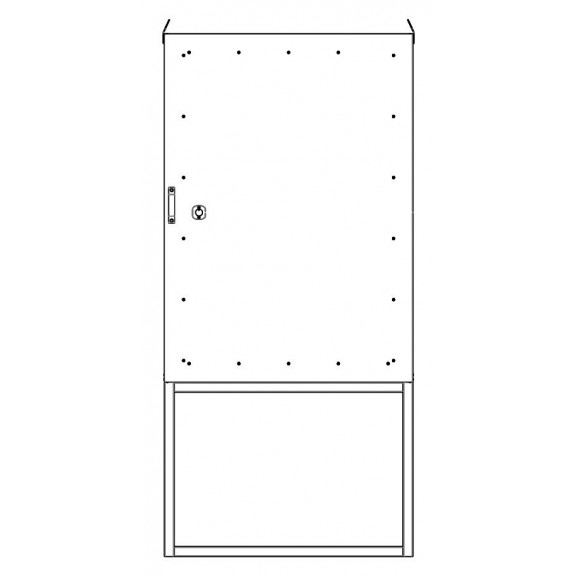

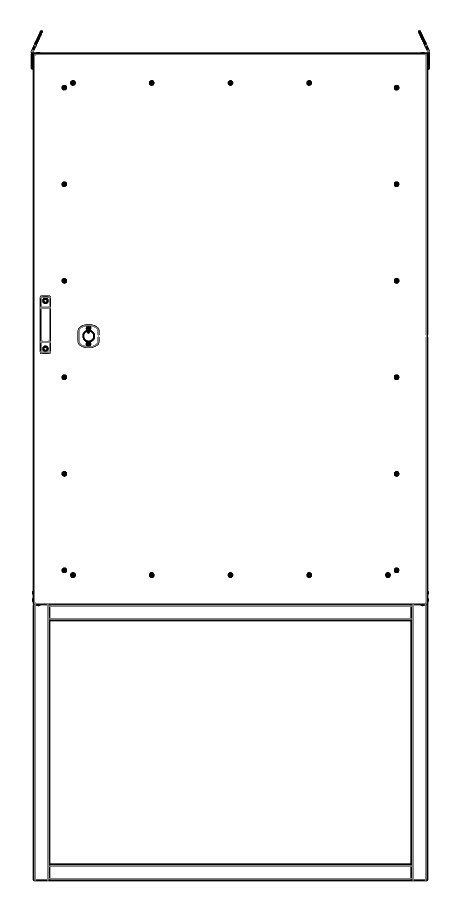

Sfera ShU 1400×1000×800 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The body, 800 mm deep and 1000 mm wide, holds several rows of DIN rails or a full-size mounting panel, which allows circuit breakers, contactors, terminal blocks, controllers and metering devices to be housed in one volume without spreading the equipment across different boxes. The door with a gasket around the perimeter and a lock ensures sealing in open-air operation, and the cable glands allow several cable lines to be brought in without breaking the protection of the body.

This format is in demand where a single switching and automation node of considerable volume is needed with wall mounting – without installation on a pedestal. Mineral wool insulation makes the cabinet suitable for housing equipment sensitive to external temperature fluctuations, and the polymer coating ensures operation in high humidity and a polluted atmosphere.

Where it is used:

• electricity metering and distribution nodes on posts and building facades;
• automation panels of pumping stations and water supply systems;
• control cabinets for outdoor and street lighting;
• automation posts of boiler houses and heating points;
• distribution nodes of industrial sites and warehouse complexes;
• telemechanics and monitoring cabinets at power industry facilities.
