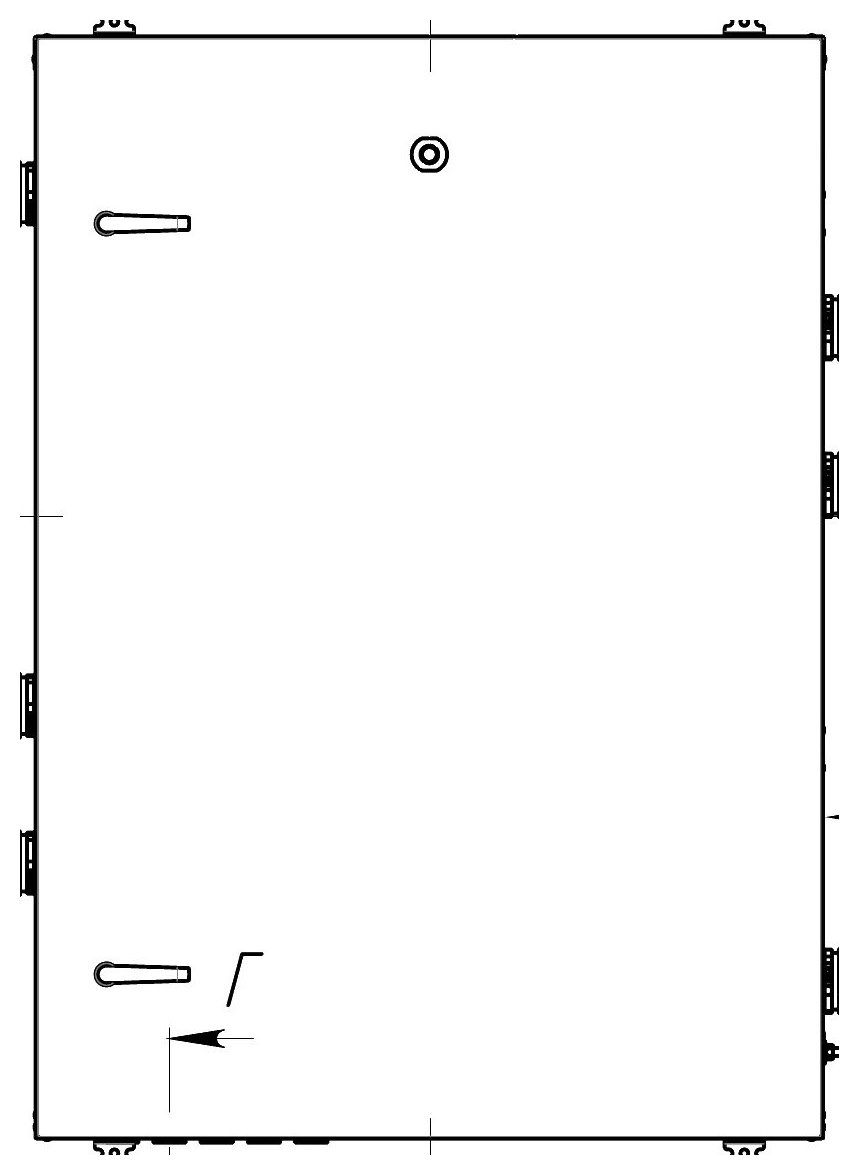

Sfera ShU 1400×1000×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1400×1000×400 mm body allows a mounting panel or several DIN rails to be placed in two or three rows in height and equipment to be installed on one or two levels in depth – circuit breakers, terminal blocks, metering devices, power supplies, controllers and switching equipment of small and medium telecommunication nodes. The width of 1000 mm is convenient for horizontal layout of service-entrance and distribution groups, and the depth of 400 mm permits compact devices with rear or side cable connections to be installed without exceeding the usable volume.

The format of this floor-standing cabinet is in demand where part of the panel or node equipment needs to be moved outside the building but the dimensions of a full-size outdoor cabinet are excessive. It is installed on a plinth or supports, which simplifies cable entry from below and maintenance in open-air operation; if necessary, the basic configuration is supplemented with heating, ventilation, a thermostat or a canopy to order.

Where it is used:

• distribution points of low-voltage networks at the boundary of a plot or entrance;
• electricity metering nodes for a group of consumers;
• housing switching equipment of local communication networks on the territory of a facility;
• control panels for outdoor lighting of streets, courtyards and sites;
• main distribution boards for temporary and auxiliary electrical installations at construction sites;
• housing instrumentation on utility networks and industrial sites.
