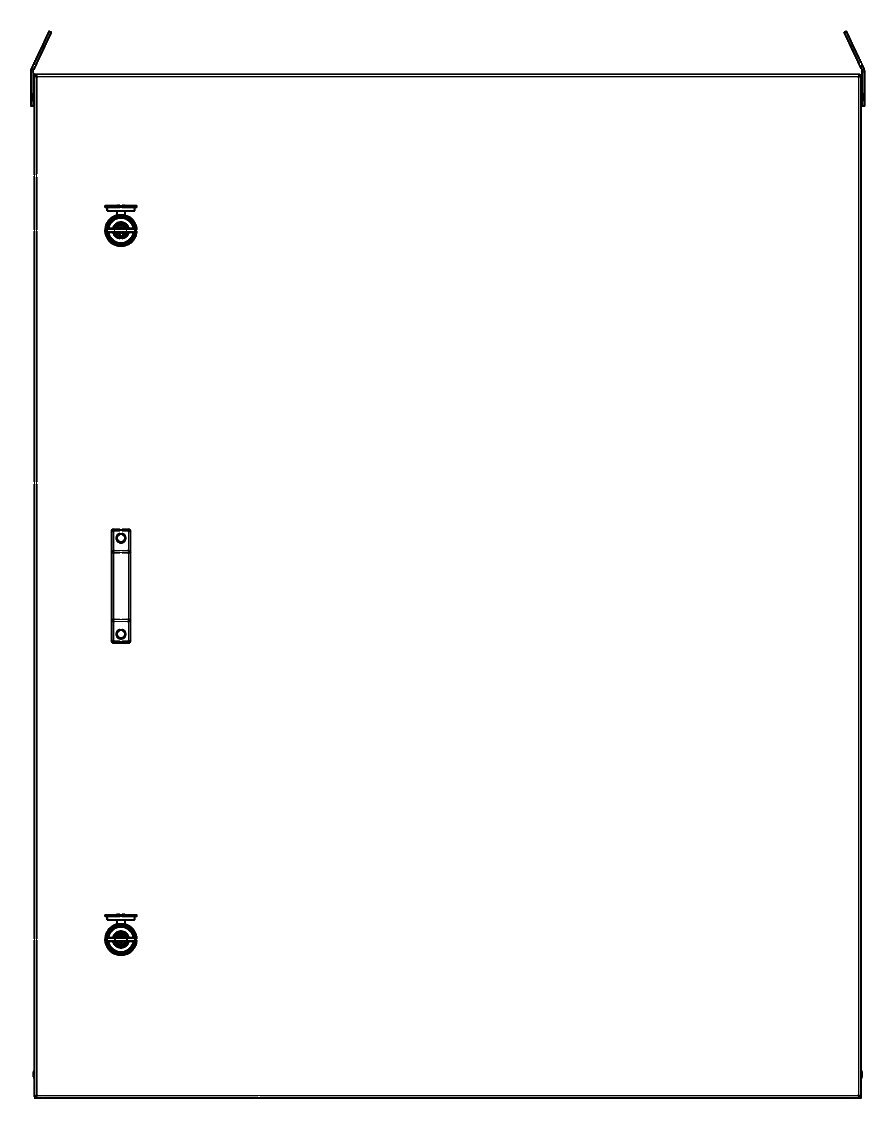

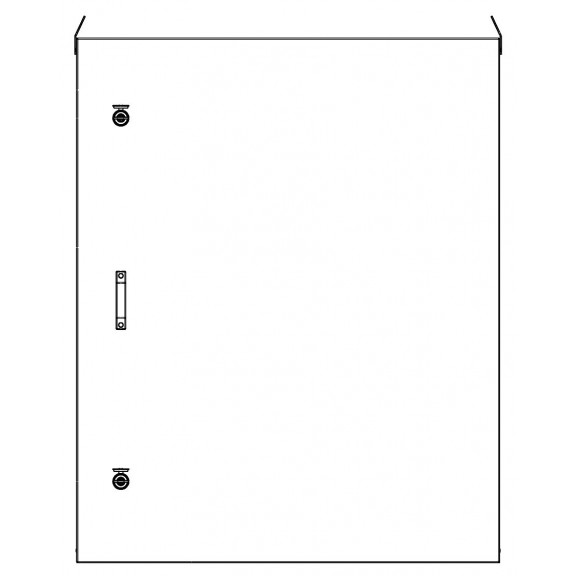

Sfera ShU 1300×1050×700 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1300×1050×700 mm and a depth of 700 mm allow several rows of circuit breakers, contactors, relays and terminal blocks, as well as metering devices, controllers and uninterruptible power supplies, to be placed inside the cabinet. The mounting panel and DIN rail make it possible to assemble a complex circuit with cables routed by functional zones, and the cable glands ensure organised and sealed entry of power and low-current lines.

Such a cabinet is installed on open sites, under canopies and on building facades, where equipment is exposed to precipitation, dust and temperature changes. Insulating the body with mineral wool reduces heat loss and protects the electronics from sharp temperature fluctuations, while the tight door gasket and IP54 protection rating prevent moisture and dust from getting inside the body with wall mounting.

Where it is used:

• electricity metering points at the service entrances of buildings and industrial sites;
• low-voltage distribution points at outdoor power supply facilities;
• automation and telemechanics cabinets for outdoor lighting systems;
• control panels for pumping and ventilation equipment on open sites;
• housing communication equipment and process control system controllers outdoors;
• power supply panels for construction sites and temporary facilities.
