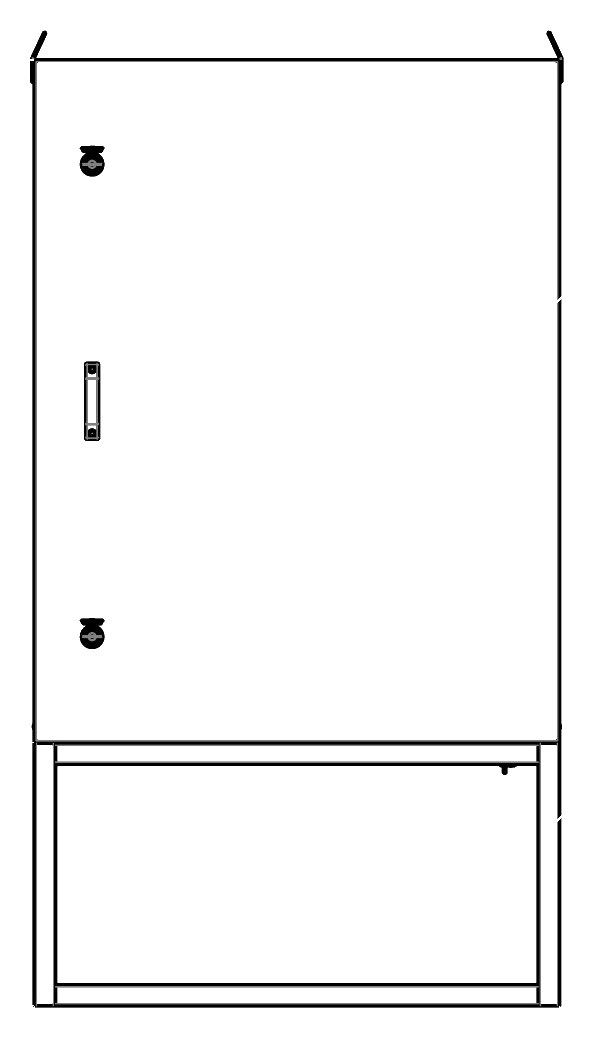

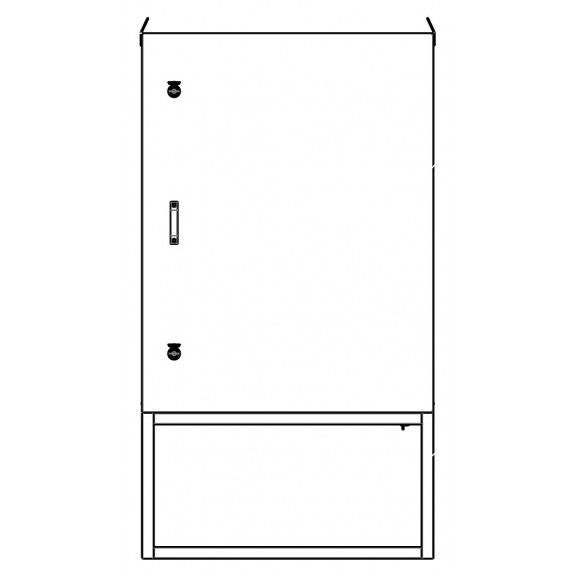

Sfera ShU 1300×1000×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1300×1000×400 mm allow up to 2–3 mounting panels or DIN rails with modular equipment – circuit breakers, terminal blocks, controllers, metering devices and switching devices – to be placed in the cabinet. The internal space is enough to assemble a medium automation panel or metering node with room for cable runs and glands for cable entry/exit.

The cabinet is installed on open sites, building service entrances, posts and utility network sites, where protection of equipment from dust and moisture is required. Floor mounting on a plinth or supports is convenient where there is no vertical wall or installation on it is undesirable, and wall insulation reduces the effect of temperature changes on the electronics. Additional options – heating, ventilation, thermostat, canopy, inspection window – are supplied to order.

Where it is used:

• electricity metering points at building service entrances and sites;
• automation cabinets for outdoor utility systems;
• switching nodes of communication lines and low-current networks;
• control panels for lighting of territories and facilities;
• telemechanics system equipment at distribution points;
• housing instrumentation on open sites.
