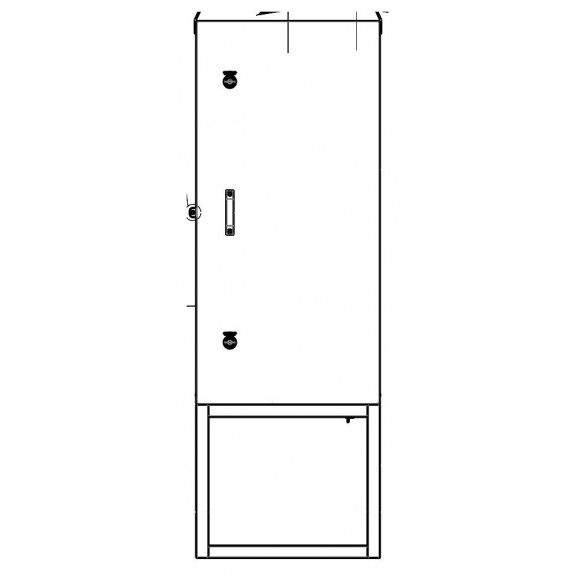

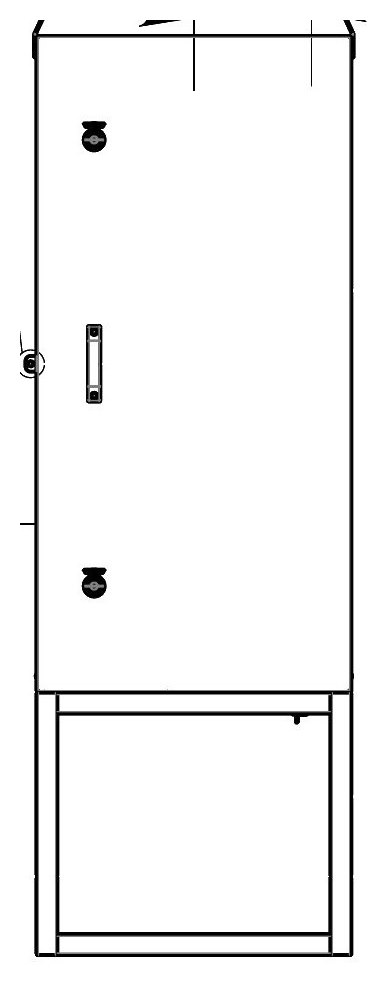

Sfera ShU 1250×600×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The width of 600 mm and depth of 400 mm allow DIN rails to be installed in two or three rows, with a height reserve of 1250 mm for additional switching, cable entries and installation of a separate metering unit. The cabinet holds a set of circuit breakers, RCDs, an electricity meter, terminal blocks and a communication module – a set of equipment for a local metering or distribution node for several lines.

Floor installation on a plinth or supports is convenient where the cabinet is placed outdoors without shelter: insulation and sealed glands protect the contents from moisture and temperature changes. If necessary, the basic configuration is supplemented with heating, ventilation, a thermostat or a canopy – to order.

Where it is used:

• electricity metering points at the boundary of balance-sheet responsibility;
• distribution points for outdoor lighting of streets and courtyards;
• automation cabinets at water supply and sewage facilities;
• housing communication and low-current system equipment on open sites;
• main distribution boards for temporary power supply of construction sites;
• control panels for pumping stations and auxiliary equipment.
