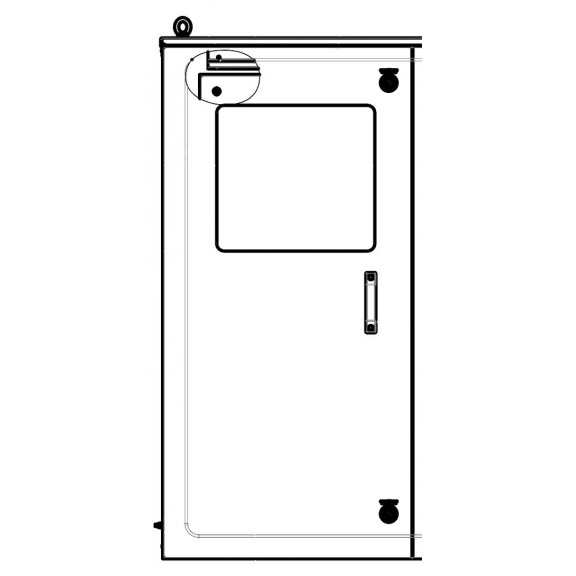

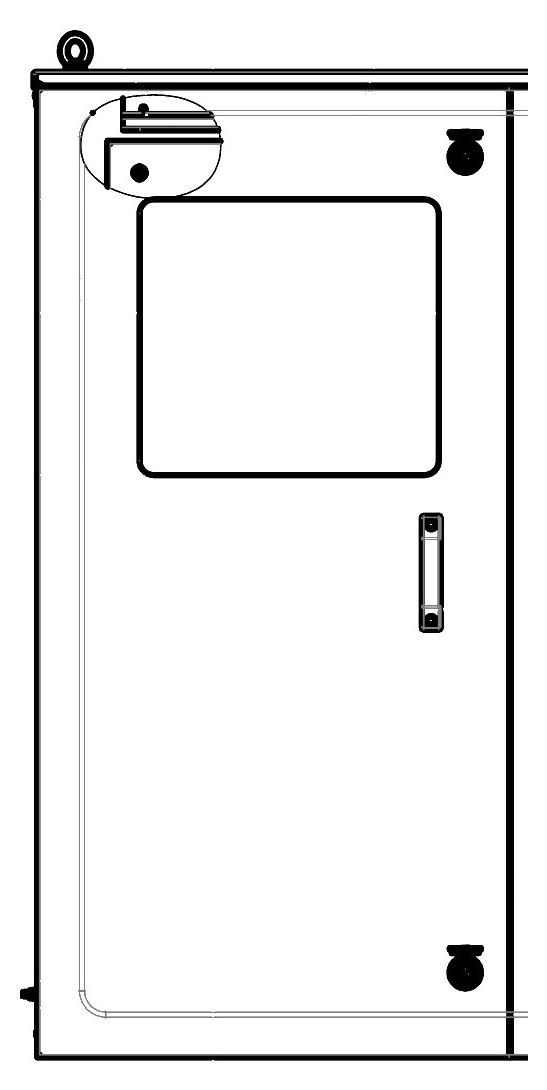

Sfera ShU 1250×1200×500 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1250×1200×500 mm and the increased body depth allow several groups of circuit breakers, metering devices, contactors, terminal blocks, as well as uninterruptible power supplies or small converters, to be housed inside – the equipment is fixed to the mounting panel or DIN rails, and cables enter through glands in the lower or side part of the body. This format is in demand where one compact cabinet is not enough and building a separate building or shelter is not practical.

Galvanised steel with polymer powder coating and a gasket around the door perimeter provide protection from outdoor conditions with wall mounting on a wall, lighting pole, steel structure or fence without a foundation. Compactness combined with considerable internal capacity makes the cabinet a convenient solution for installation in places with limited area and cramped access.

Where it is used:

• outdoor power supply and distribution at industrial sites;
• metering and automation nodes in outdoor lighting systems;
• panel equipment at communication and telecommunication facilities;
• housing control devices for utility networks outside buildings;
• electrical equipment at construction and temporary facilities;
• protecting instrumentation in outdoor conditions.
