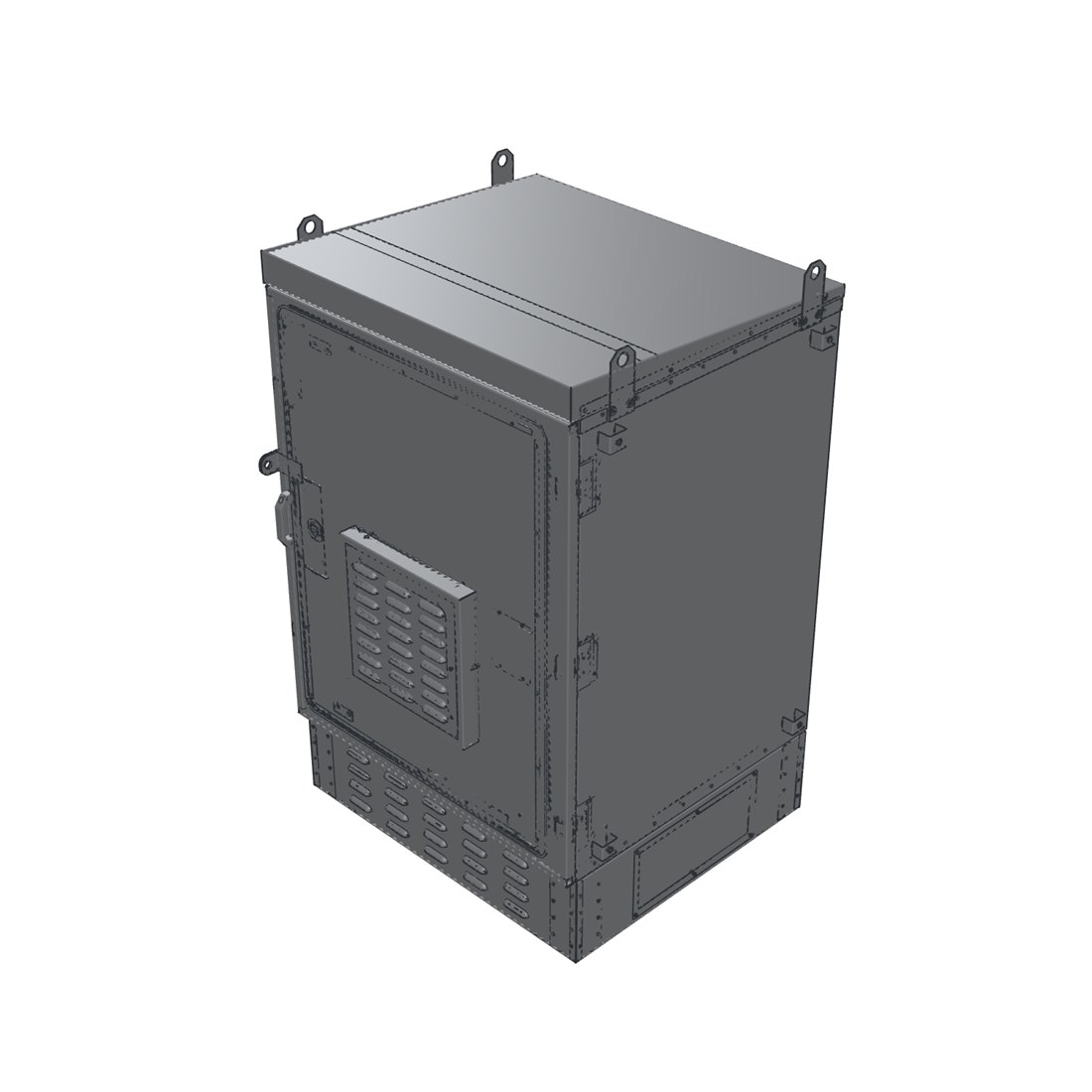

Sfera ShU 1200×950×850 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1200×950×850 mm dimensions allow several rows of DIN rails with circuit breakers, contactors, terminal blocks, as well as metering devices, controllers and uninterruptible power supplies, to be placed in the cabinet. The mounting panel and depth reserve allow wiring and cable gland connections without overloading the internal space, which simplifies subsequent maintenance and module replacement.

The wall mounting and the galvanised steel body with thermal insulation make the cabinet suitable for installation on open sites, posts and building walls in outdoor conditions. The ShU format with IP54 and insulation suits places where equipment must remain operational through temperature changes and without constant supervision, and the compact external dimensions allow it to be installed in a limited area.

Where it is used:

• distribution points of power supply systems for buildings and structures;
• electricity metering points at the service entrance of a facility;
• control cabinets for outdoor and street lighting;
• housing communication equipment and telecommunication nodes;
• automation of pumping stations and utility systems on open sites;
• control cabinets for ventilation and process equipment at industrial facilities.
