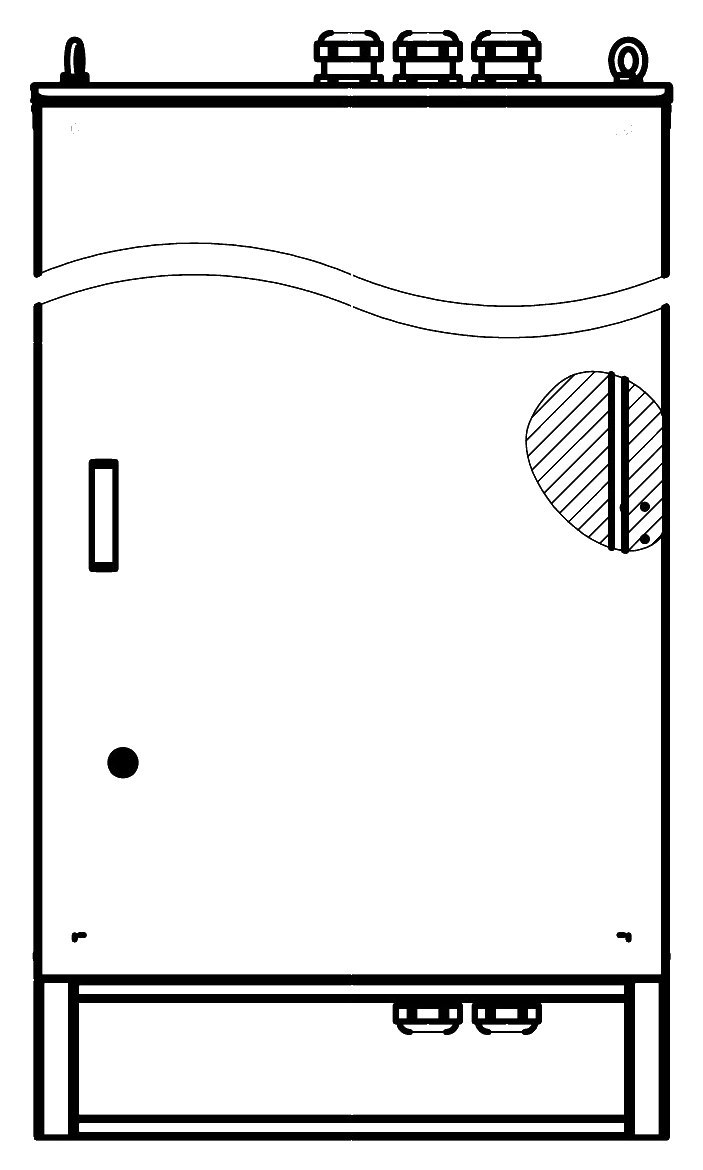

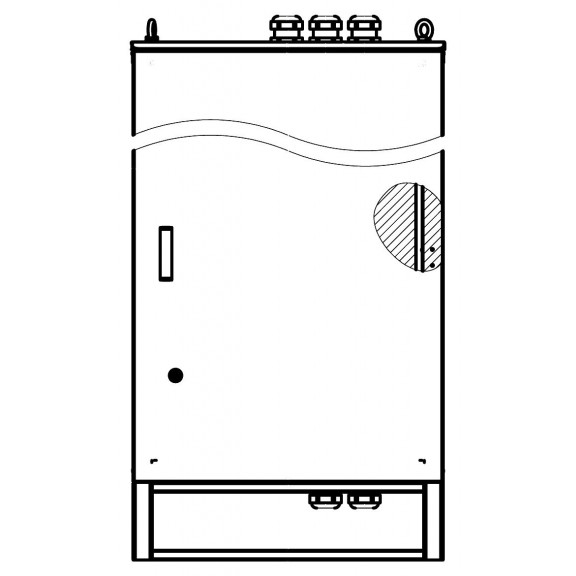

Sfera ShU 1200×800×800 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1200×800×800 mm allow a mounting panel or DIN rail with several rows of breakers, relays, terminals, as well as metering devices, power supplies, controllers and medium-density switching equipment to be placed inside. The depth of 800 mm gives room for installing larger components – uninterruptible power supplies, small automation panels or network equipment with cable ducts.

The wall mounting and gasketed door allow the cabinet to be installed on posts, building walls, steel structures and support stands without burying or a foundation. Mineral wool and IP54 protect the equipment when working in the open air and under a canopy, and the cable glands simplify the entry of power and low-current cables without breaking the seal of the body.

Where it is used:

• electricity metering nodes and distribution points on power line poles;
• automation cabinets of outdoor and architectural lighting systems;
• communication equipment and telecommunication nodes along routes and at communication facilities;
• control panels for pumping stations and utility networks;
• instrumentation at production and industrial sites;
• housing process control system and dispatching equipment at remote facilities.
