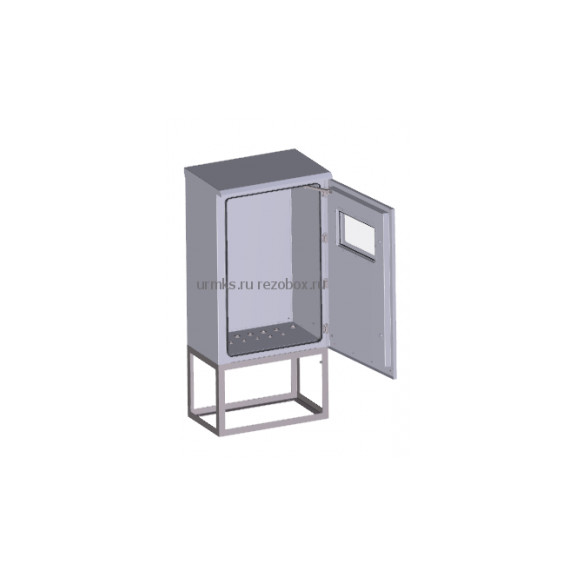

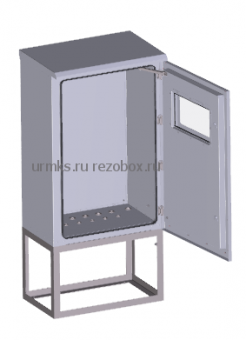

Sfera ShU-1200x800x500-2-2-IP65 cabinet

Body made of galvanised steel. Metal thickness 1,5-2 mm;

2. Protective canopy

3. Triangular-key locks (+ keys) – 2 pcs;

4. Thermal insulation material – mineral wool insulation boards (50 mm thick);

5. Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);

6. Welded frame made of 45×45×4 angle, 500 mm high;

7. Door with a catch in the open position – 1 pcs;

8. Convenient plastic handle on the cabinet door – 1 pcs;

9. Earthing wire between the body and the door – 1 pcs;

10. Inspection window 200×400×32 mm – 1 pcs;

11. Coupling for M20×1,5 cable gland – 6 pcs

12. Coupling for M25×1,5 cable gland – 4 pcs

13. Coupling for M32×1,5 cable gland – 1 pcs

14. Mounting panel made of galvanised steel. Metal thickness 2 mm;

15. Polymer powder coating per the RAL catalogue;
