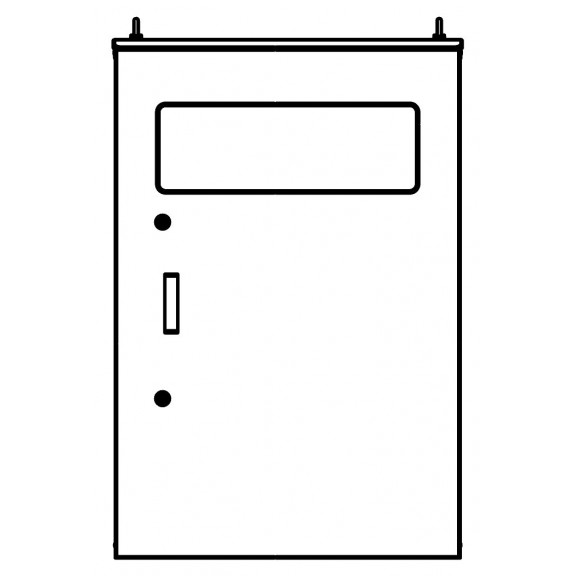

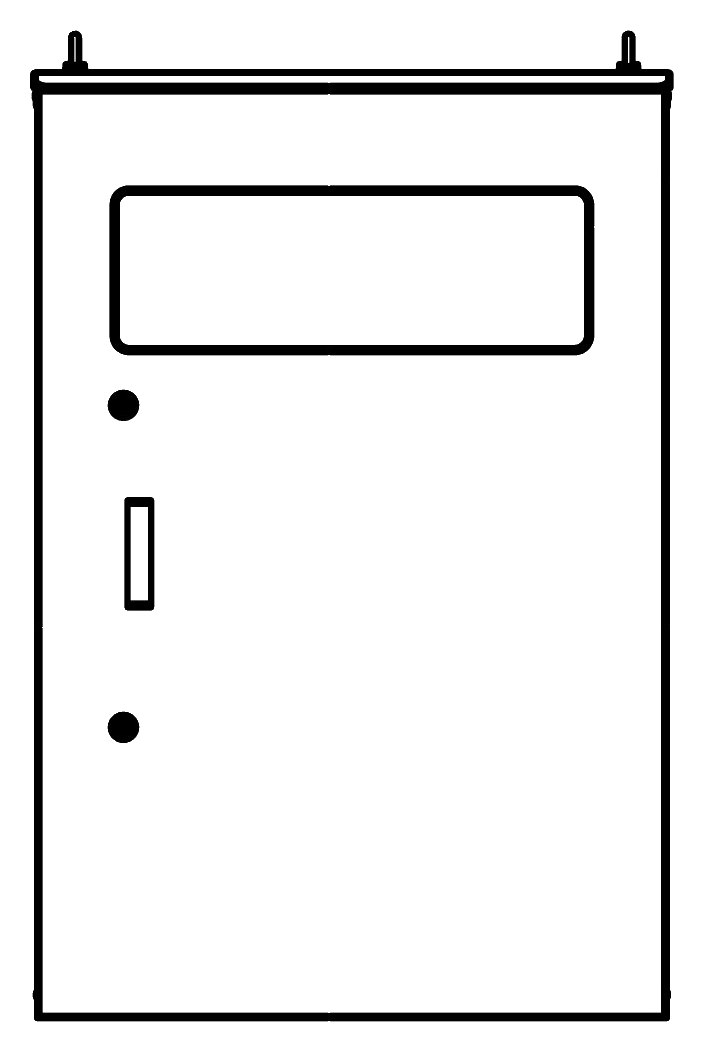

Sfera ShU 1200×800×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1200×800×300 mm allow several rows of modular equipment to be placed on the mounting panel or DIN rails: a main device, a metering meter, a group of circuit breakers, terminal blocks and auxiliary automation. The width of 800 mm makes it possible to arrange the equipment in several vertical sections, and the height of 1200 mm to spread elements across functional zones (service entrance, metering, outgoing lines) without crowding during maintenance.

The cabinet is placed outdoors or in unheated areas where protection from dust and water splashes to IP54 and additional thermal insulation of the body are required. Floor installation on a plinth or supports is convenient for nodes with a relatively large equipment set that is impractical to hang on a wall. To order, the body can be supplemented with heating, ventilation, a thermostat, a canopy or an inspection window.

Where it is used:

• electricity metering points at the boundary of balance-sheet responsibility;
• main distribution devices for stand-alone buildings and structures;
• automation panels of outdoor lighting systems;
• distribution points on the territories of industrial sites;
• control cabinets for pumping stations and utility networks;
• metering and switching equipment at utility and energy supply company facilities.
