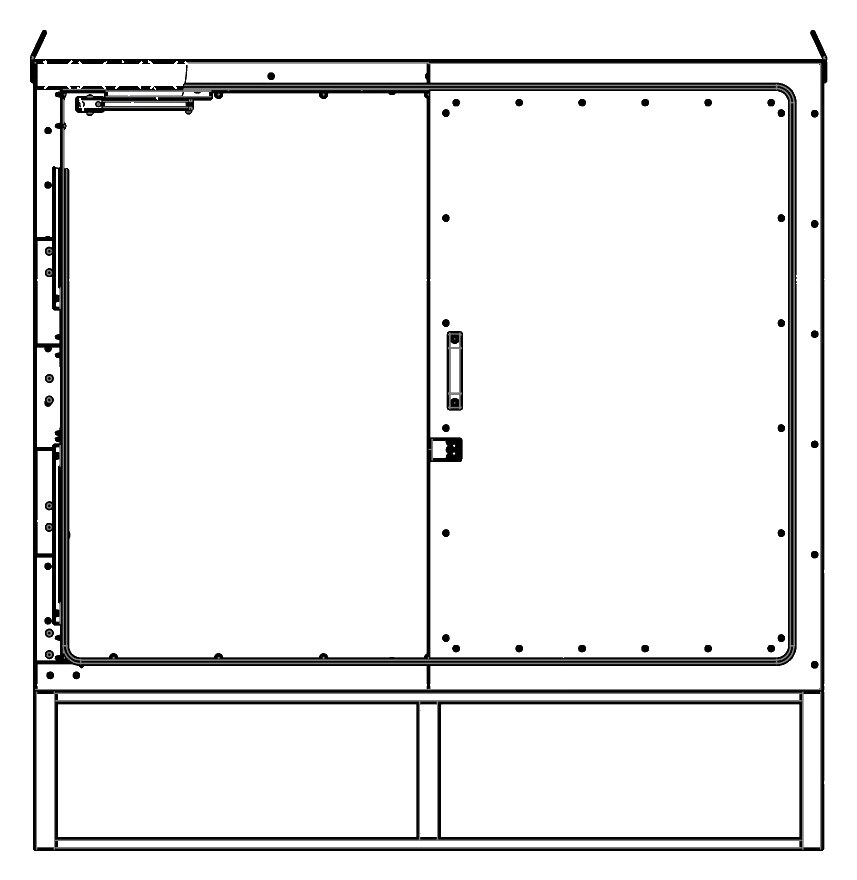

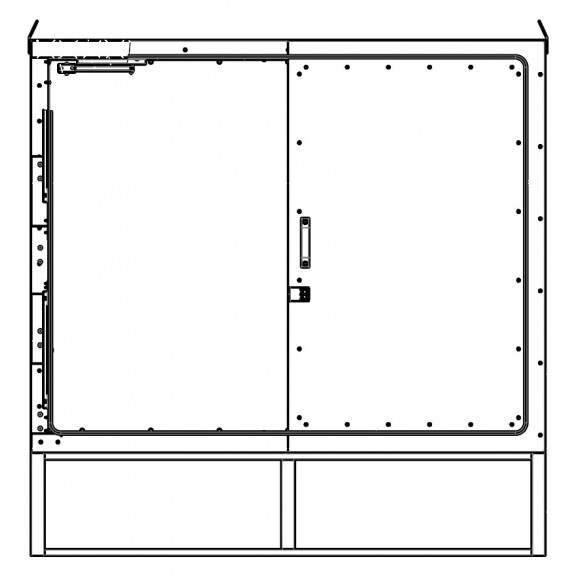

Sfera ShU 1200×1500×1000 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1200×1500×1000 mm cabinet allows several mounting panels or DIN rails to be placed, distributed across sections, as well as large devices – main distribution devices, power breakers, contactors, uninterruptible power supplies, terminal blocks and cable entries in a quantity sufficient to serve several lines or groups of consumers at once. The body width of 1500 mm makes it possible to divide the space into functional zones, for example power and low-current, without over-densifying the installation.

This format is convenient for facilities with a distributed load, where several panels or a large set of equipment need to be gathered in one place instead of installing a row of small cabinets. Floor installation on a plinth or supports simplifies maintenance given the heavy weight of the components, and the insulated IP54 body provides year-round outdoor operation. Additional options – heating, ventilation, thermostat, canopy, inspection window – are installed to order.

Where it is used:

• node distribution points at industrial sites;
• combined power supply panels for several areas or shops;
• housing automation and dispatching equipment of large utility systems;
• control cabinets for pumping stations and sewage systems;
• installation places for telecommunication and server equipment on open sites;
• distribution points of street and architectural lighting at extended facilities.
