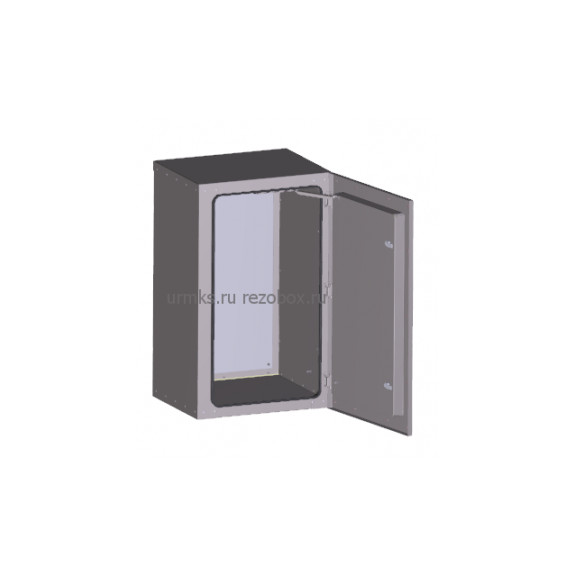

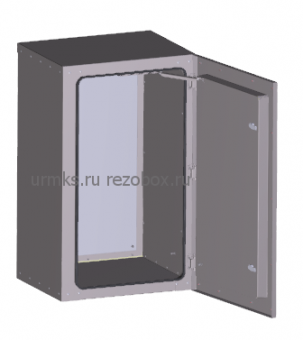

Sfera ShU-1200x1200x500-2-2-IP65 cabinet

1. Body made of galvanised steel. Metal thickness 1,5-2 mm;

2. Protective canopy

3. Triangular-key locks (+ keys) – 4 pcs;

4. Thermal insulation material – mineral wool insulation boards (50 mm thick);

5. Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);

6. Welded frame made of 45×45×4 angle, 500 mm high;

7. Door with a catch in the open position – 2 pcs;

8. Convenient plastic handle on the cabinet door – 2 pcs;

9. Earthing wire between the body and the door – 2 pcs;

10. Inspection window 200×300×32 mm – 2 pcs;

11. Coupling for M20×1,5 cable gland – 2 pcs

12. Coupling for M25×1,5 cable gland – 12 pcs

13. Mounting panel made of galvanised steel. Metal thickness 2 mm;

14. Protective cover for the control station (button canopy) – 1 pcs

15. Box bracket – 1 pcs

16. Polymer powder coating per the RAL catalogue;

17. Packaging: bubble wrap + corrugated cardboard.
