Sfera ShU-1200x1100x400-2-2-IP54 cabinet

Name: Sfera ShU-1200x1100x400-2-2-IP54 cabinet
Brand: Сфера
SKU: 761
Price: 75600 RUB
Availability: PreOrder

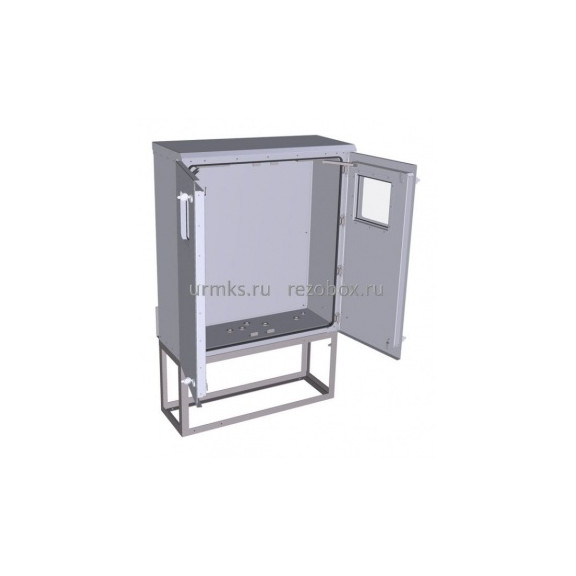

Sfera ShU-1200x1100x400-2-2-IP54 cabinet Photo 1

Characteristics

Cabinets made to order to the required dimensions, taking operating climatic conditions into account! Installation of equipment to create and maintain a climate (heating, ventilation, air conditioner).

To determine the internal dimensions:

with thermal insulation based on mineral wool boards, assume a wall thickness of 54 mm and a door thickness of 47 mm;
with thermal insulation based on foamed rubber or foamed polyethylene, assume a wall and door thickness of 25 mm.

Price: 75 600 rubles*

Catalog download

* - Цена, указанная на сайте, актуальна на момент размещения информации. Для получения актуального предложения отправьте заявку.

Description
Equipment

Overall dimensions (height × width × depth), mm	1200×1100×400
Type	Insulated cabinet (ShU)
Body material	Galvanised steel
Thermal insulation material	Mineral wool thermal insulation boards (50 mm thick)
Degree of protection	IP54

Body with overall dimensions (H×W×D) 1200*1100*400 mm, protection class IP54, galvanised metal, front thickness 1,5 mm, inner 1,0 mm
Canopy
Insulation – mineral wool, 50 mm thick
Grey polymer powder coating – RAL7035 textured finish + primer
Door gasket
Window 250×250 mm* – 2 pcs
Oskar hinges
Galvanised mounting panel 2 mm
Triangular-key lock – 4 pcs
Frame 500 mm high, polymer powder coating in black – RAL9005 textured finish + primer
Bracket
M25×1,5 coupling – 6 pcs
M20×1,5 coupling – 1 pcs
Packaging: bubble wrap + corrugated cardboard + polystyrene foam + wooden crate
