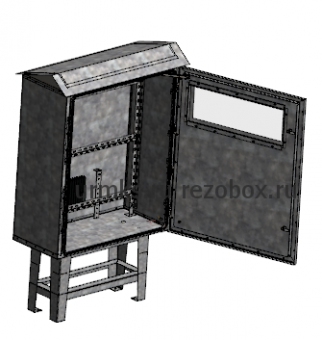

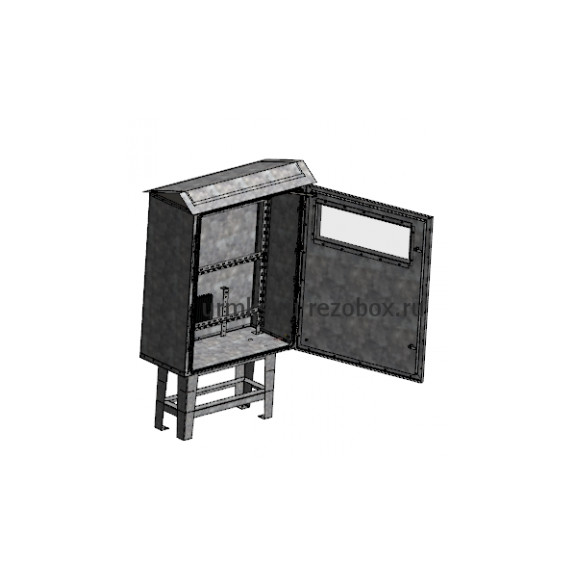

Sfera ShU-1200x1000x450-2-2-IP65 cabinet

1. Body made of galvanised steel. Metal thickness 1,0-1,5 mm;

2. Protective canopy

3. Triangular-key locks (+ keys) – 2 pcs;

4. Thermal insulation material – mineral wool insulation boards (30 mm thick);

5. Reliable fittings (hinges, locks, U-shaped door gasket, window gasket);

6. Welded frame 500 mm high;

7. Door with a catch in the open position – 1 pcs;

8. Convenient plastic handle on the cabinet door – 1 pcs;

9. Earthing wire between the body and the door – 1 pcs;

10. Inspection window 230×700×32 mm – 1 pcs;

11. RKN-15 U2 IP55 externally threaded fastening element – 5 pcs

12. Entry coupling 30 mm for RKN-15 – 5 pcs

13. Earthing bus

14. Vertical perforated angles 35×35 made of galvanised steel – 2 pcs;

15. Horizontal perforated angles 35×35 made of galvanised steel – 3 pcs;

16. OSHA-R-2-200 W explosion-proof heater with built-in thermostat

17. Polymer powder coating per the RAL catalogue;

18. Packaging: bubble wrap + corrugated cardboard.
