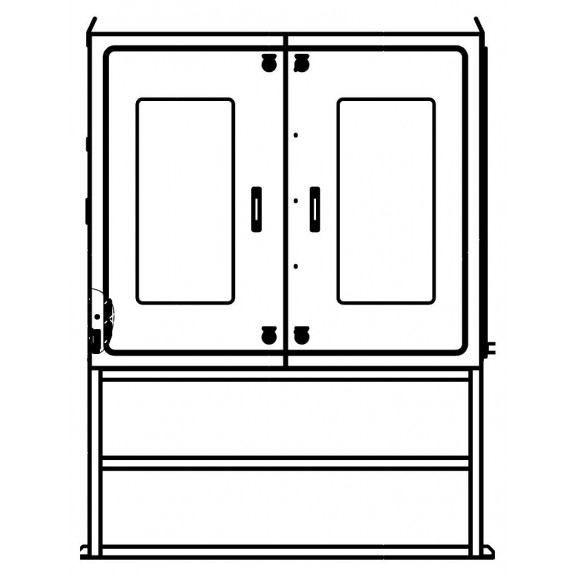

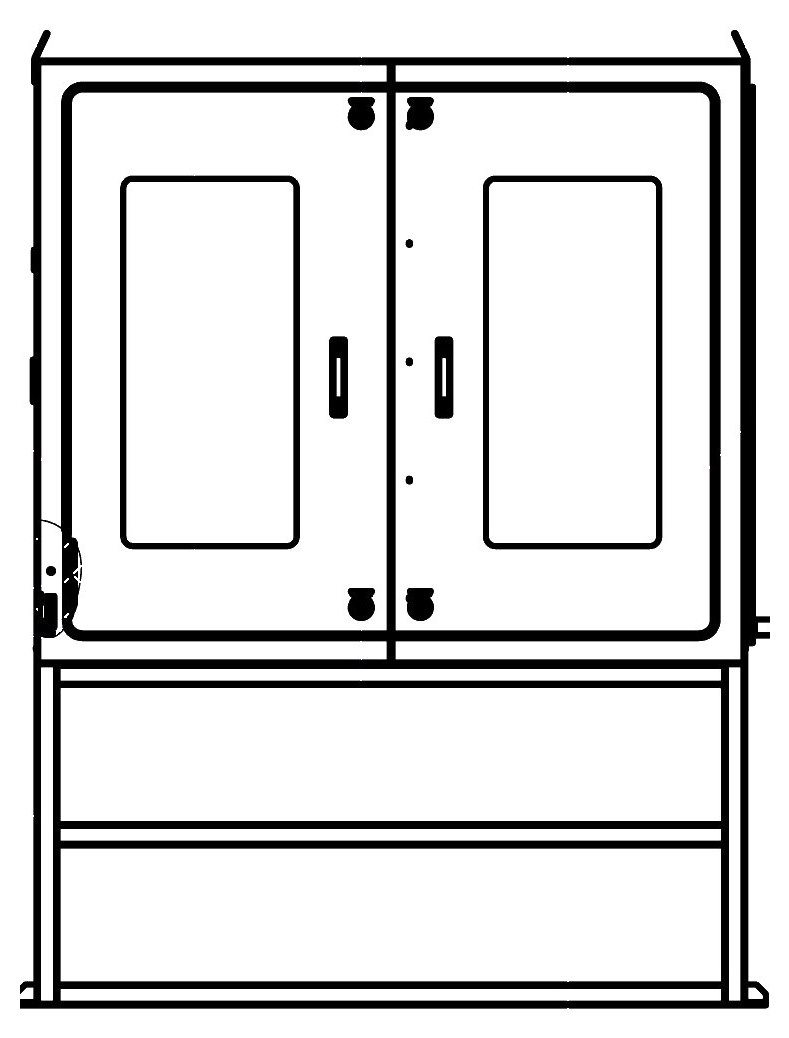

Sfera ShU 1150×1350×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The body with dimensions of 1150×1350×400 mm holds several rows of DIN rails or a combination of a mounting panel with distribution, metering and automation equipment – main and distribution breakers, meters, contactors, terminal blocks, relays, line protection devices. The wide body (1350 mm) is convenient for horizontal layout of several functional sections in one cabinet, and the depth of 400 mm for installing equipment with protruding terminals and cable runs without bending.

The wall mounting and the gasketed door with a lock make the cabinet suitable for installation on building walls, posts, fences and steel structures in places where a floor-standing panel cannot be placed. Mineral wool insulation reduces the effect of temperature changes on the electronics and contact connections, and the IP54 protection rating permits operation under a canopy and in the open without an additional casing.

Where it is used:

• electricity metering and distribution at a building service entrance or at the boundary of balance-sheet responsibility;
• housing automation and control panels for outdoor lighting;
• installing communication and low-current system equipment on facades and posts;
• distribution points on the territory of industrial sites and warehouses;
• control panels for pumping stations and utility systems placed in the open;
• switching equipment at road and street infrastructure facilities.
