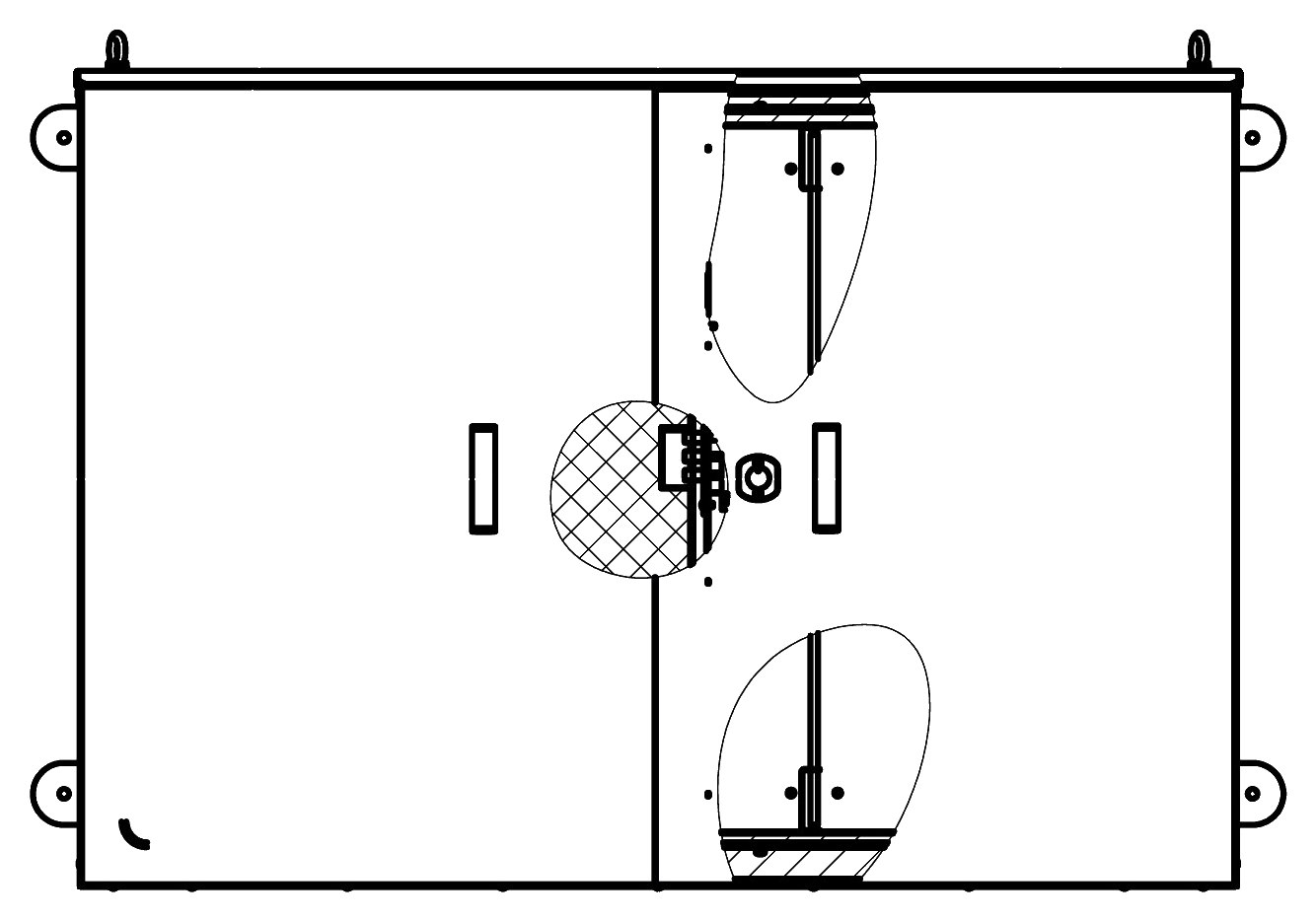

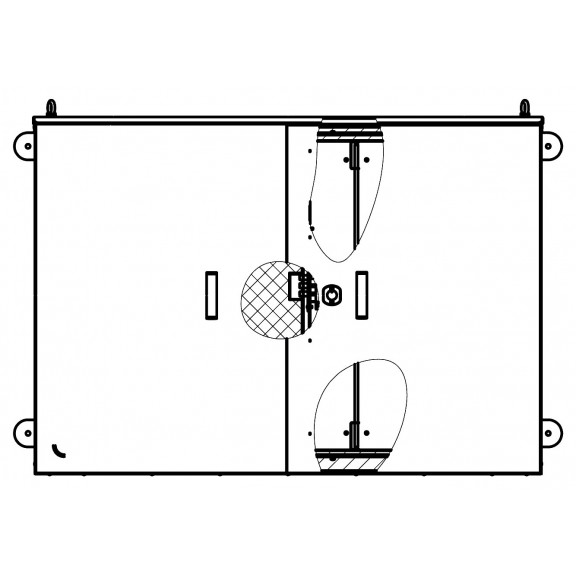

Sfera ShU 1050×1490×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The internal mounting volume of the cabinet allows one or two mounting panels or a row of DIN rails with a total length of about 1,4 m to be placed, which makes it possible to install several control, automation or metering panels in a single body. The depth of 300 mm limits the installation of large devices, so the format is best for distribution, switching and low-current equipment, as well as for compact metering and protection nodes.

The body is installed in the open air or in unheated premises on a plinth or supports; the gasketed door with a lock protects against dust and moisture. To order, the cabinet is equipped with heating, ventilation, a thermostat, a canopy or an inspection window for specific operating conditions.

Where it is used:

• electricity metering points on incoming lines of residential and industrial facilities;
• low-voltage distribution points on sites with several outgoing lines;
• automation and telemechanics cabinets at utility network facilities;
• control posts for lighting and outdoor electrical installations;
• housing communication switching equipment outdoors;
• protection and control panels at construction and production sites.
