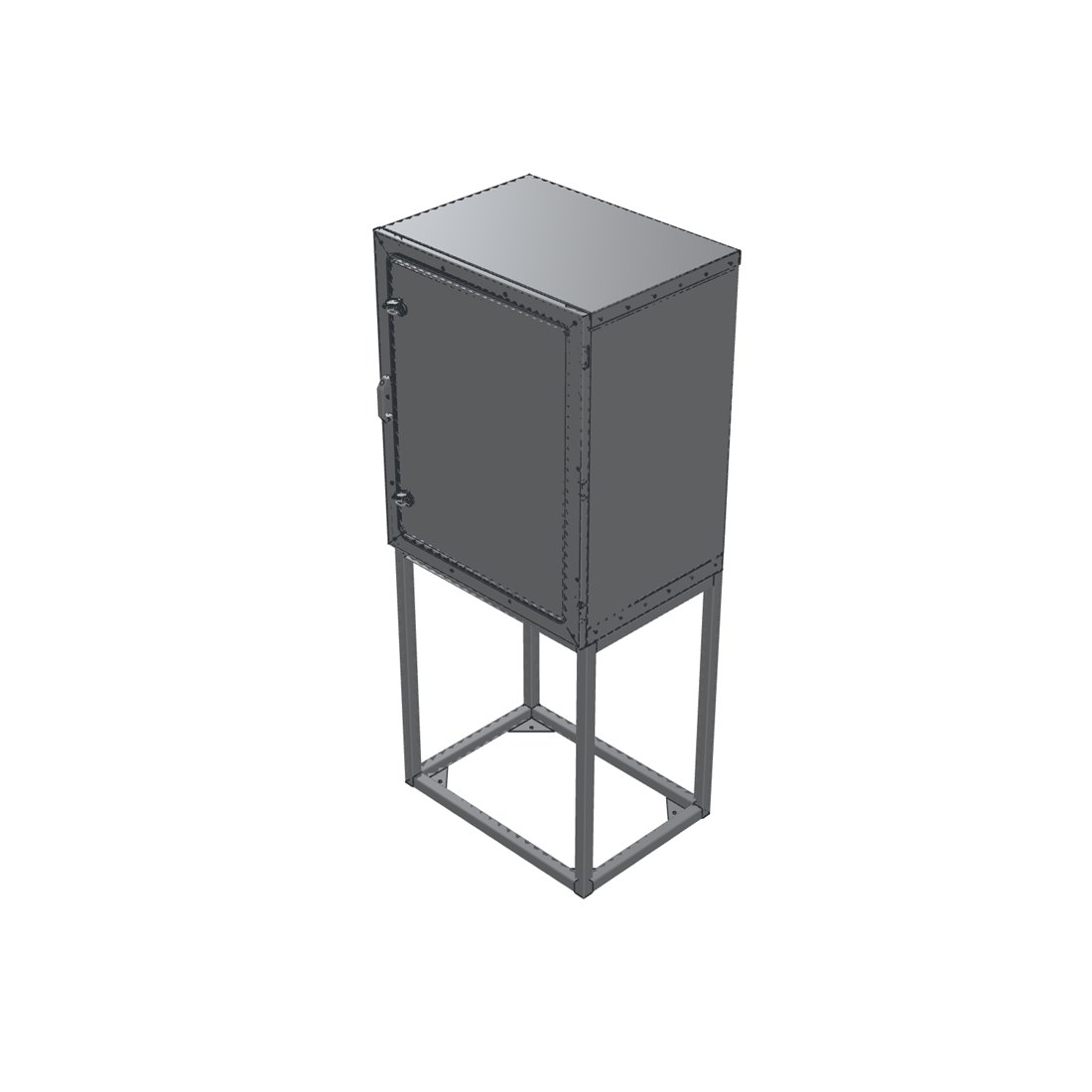

Sfera ShU 1000×800×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1000×800×600 mm dimensions allow circuit breakers, contactors, starters, terminal blocks, metering devices and low-current equipment to be placed inside on a mounting panel or DIN rail, as well as cable entries through glands in the lower part of the body. This volume is enough for a panel of medium complexity – with redundant lines, additional protection devices or a communication node – while the cabinet remains compact for wall mounting.

The insulated body with a gasket around the door perimeter and galvanised steel with polymer powder coating keeps the equipment working when placed outdoors without separate shelter. The format suits installation on open sites, along routes, on building facades and posts, where protection from moisture and dust and maintaining the thermal regime inside the body are important.

Where it is used:

• outdoor power distribution boards at facilities with limited installation space;
• electricity metering points and monitoring devices at the boundary of balance-sheet responsibility;
• automation and telemechanics cabinets along pipeline routes and utility networks;
• housing communication system equipment and low-current networks outside heated premises;
• lighting control panels in industrial areas and residential courtyards;
• electrical equipment at construction sites and temporary sites.
