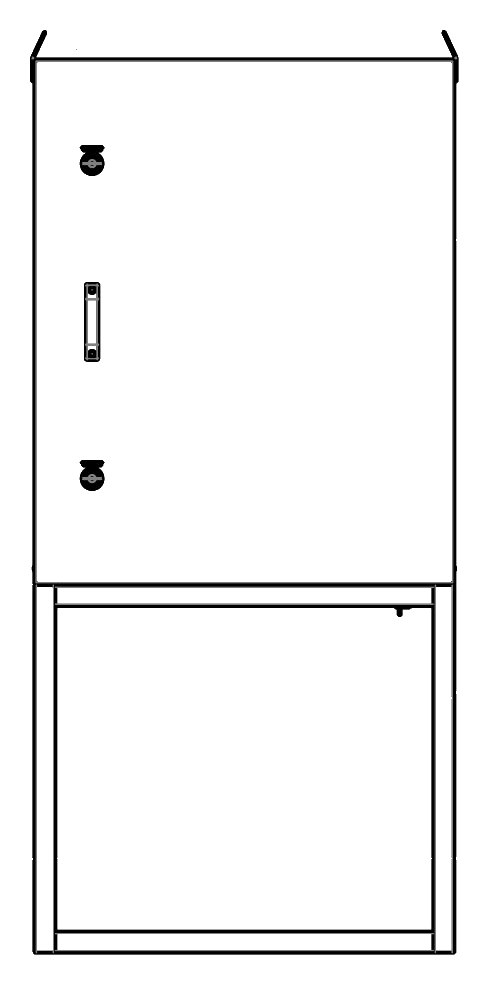

Sfera ShU 1000×800×400 IP54 cabinet

Name: Sfera ShU 1000×800×400 IP54 cabinet
Brand: Сфера
SKU: 1775

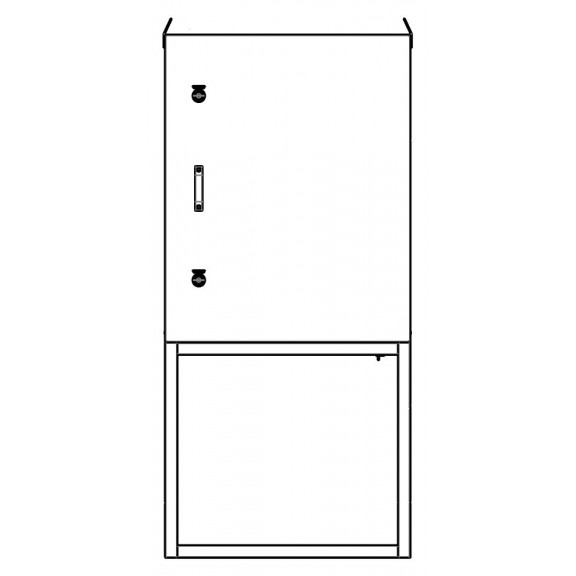

Sfera ShU 1000×800×400 IP54 cabinet Photo 1

Characteristics

The floor-standing outdoor cabinet of the ShU604 series with external dimensions of 1000×800×400 mm is designed to house a medium-sized set of equipment requiring protection from precipitation and moderate insulation. This size is optimal when one wall-mounted box is no longer enough and a full-size floor-standing cabinet is not rational. The galvanised steel body with powder coating and mineral wool 50 mm provides protection rating IP54 and suits installation on a plinth or supports.

Catalog download

Description

Part number (design documentation code)	ShU604
Overall dimensions (height × width × depth), mm	1000×800×400
Type	Insulated outdoor cabinet (ShU)
Body material	Galvanised steel
Thermal insulation material	Mineral wool (50 mm thick)
Degree of protection	IP54
Mounting	Floor-standing

Equipment

Galvanised steel body with polymer powder coating
Thermal insulation – mineral wool 50 mm
Door with a gasket around the perimeter and a lock
Mounting panel / DIN rail
Cable glands
Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The ShU604 cabinet allows several DIN rails or a mounting panel with equipment of medium density to be placed: metering devices, circuit breakers, terminal groups, low-current and switching equipment, power supplies. The depth of 400 mm gives room for installing bulkier components and arranging cable space without overloading the internal volume.

The floor-standing cabinet format is convenient where stand-alone installation outside a building is needed – on a site, by a fence, on a post or plinth – with no dependence on a load-bearing wall. The basic configuration includes a door with a gasket and lock, a mounting panel or DIN rail, and cable glands for cable entries; heating, ventilation, a thermostat, a canopy and an inspection window are supplied to order.

Where it is used:

housing metering and distribution nodes at utility facilities and in utility networks;
installing switching equipment at communication sites and low-current systems;
setting up automation panels at production and warehouse territories;
housing video surveillance and access control system equipment;
installation on posts and fences in road and municipal infrastructure;
housing distribution equipment at construction and temporary sites.
