Sfera ShU 1000×800×350 IP54 cabinet

Name: Sfera ShU 1000×800×350 IP54 cabinet
Brand: Сфера
SKU: 1740

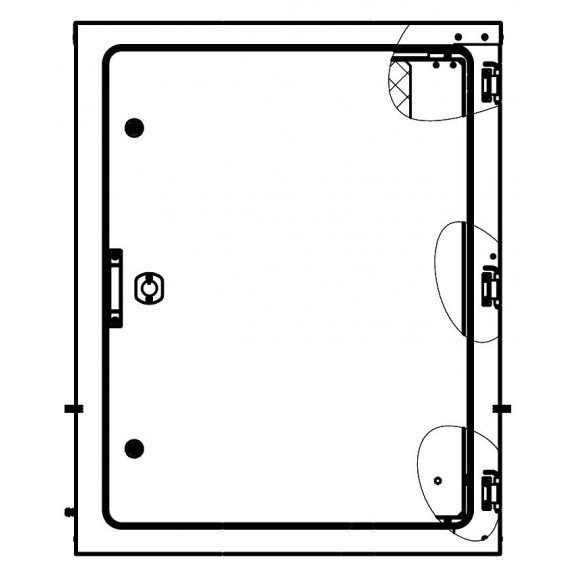

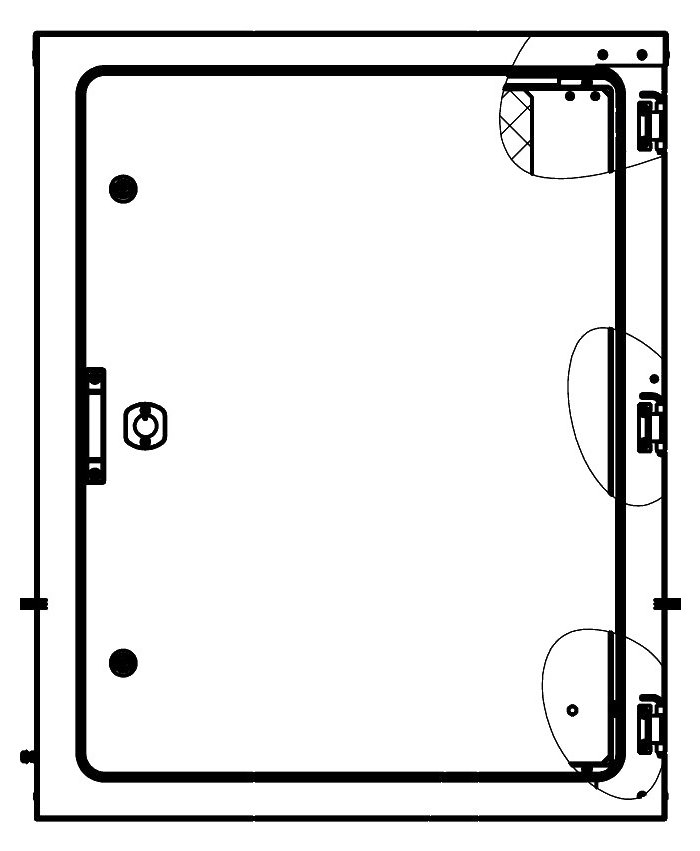

Sfera ShU 1000×800×350 IP54 cabinet Photo 1

Characteristics

The ShU 1000×800×350 mm floor-standing outdoor cabinet (type ShU220) is designed to house equipment of medium mounting density – from distribution panels to automation nodes. The increased width of 800 mm gives room for several DIN rails or panels side by side, and the insulated body with IP54 allows the cabinet to be used outdoors. This format is in demand where not a single panel but a set of interconnected devices needs to be housed in one body.

Catalog download

Description

Part number (design documentation code)	ShU220
Overall dimensions (height × width × depth), mm	1000×800×350
Type	Insulated outdoor cabinet (ShU)
Body material	Galvanised steel
Thermal insulation material	Mineral wool (50 mm thick)
Degree of protection	IP54
Mounting	Floor-standing

Equipment

Galvanised steel body with polymer powder coating
Thermal insulation – mineral wool 50 mm
Door with a gasket around the perimeter and a lock
Mounting panel / DIN rail
Cable glands
Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1000×800×350 mm cabinet allows several mounting panels or DIN rails to be placed in one plane, and part of the equipment to be moved onto the door. This size suits sets of a main breaker, meter, a group of modular protection devices and terminal blocks, or the joint installation of a metering panel and an automation panel without splitting into two separate bodies.

Mineral wool 50 mm and the IP54 protection rating allow operation outdoors and in unheated premises, and floor installation on a plinth removes the weight and mounting depth limits typical of wall-mounted cabinets. The cable glands and the gasketed door with a lock protect the contacts from dust and moisture during on-site servicing.

Where it is used:

electricity metering panels together with service-entrance automation at facilities with outdoor placement;
lighting and ventilation control nodes on process sites;
automation panels of pumping stations and local boiler houses;
distribution points for temporary power supply at construction sites;
monitoring and metering cabinets on utility networks of settlements;
automation assemblies for outdoor installations at industrial facilities.
