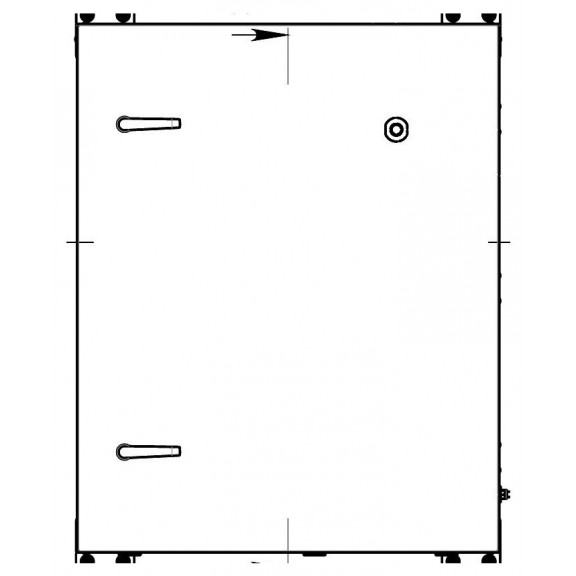

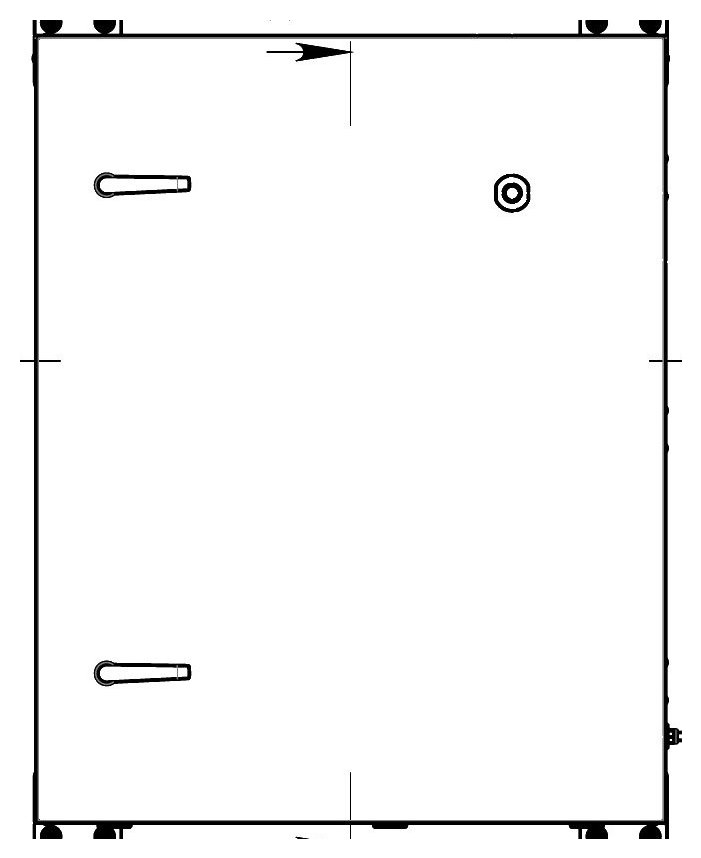

Sfera ShU 1000×800×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1000×800×300 mm give a mounting panel or DIN rails about 1000 mm high and 800 mm wide – enough to install several rows of modular equipment, a main breaker, an electricity meter, terminal blocks and an automation controller. The depth of 300 mm allows devices to be placed with DIN rails in two rows or cable ducts to be added without crowding during installation and maintenance.

Floor installation on a plinth or supports removes the need for fixing to a wall or load-bearing structures and simplifies routing of underground cable entries. The door with a gasket and lock provides basic protection of the contents, and the cable glands provide sealed cable entry from outside. If necessary, the cabinet is supplemented with heating, ventilation, a thermostat or a canopy – to order.

Where it is used:

• electricity metering points at the boundary of balance-sheet responsibility;
• panels of street and architectural lighting;
• automation cabinets of pumping stations and water supply;
• communication equipment and process control system controllers on open sites;
• distribution points for temporary power supply of construction sites;
• control cabinets for barriers, gates and access control systems.
