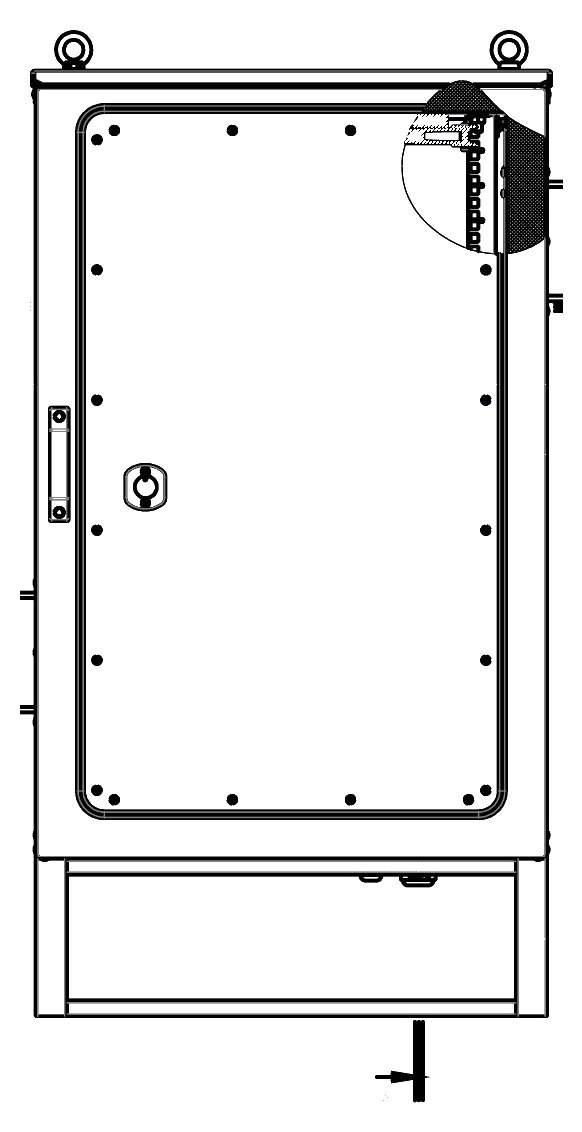

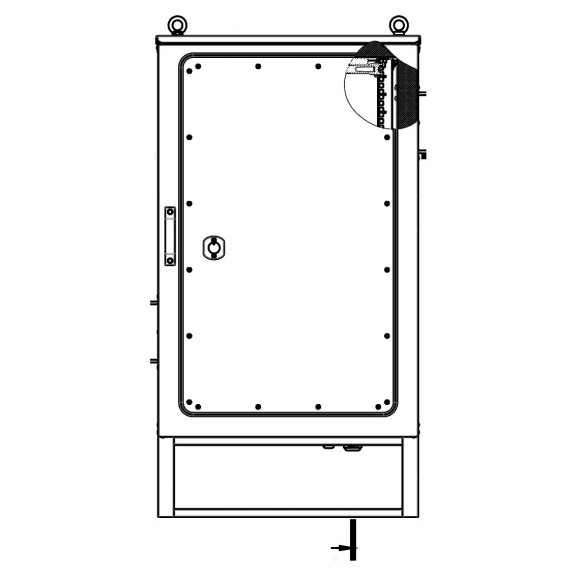

Sfera ShU 1000×650×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The body 1000 mm high and 600 mm deep makes it possible to install one or two mounting panels with DIN rails or to place a combination of an automation panel and switching equipment. In its 650 mm width the cabinet fits panels of 24–36 modules, small process control cabinets, metering nodes, low-power uninterruptible power supplies and cable entries with a reserve for cable glands. Mineral wool 50 mm and a gasketed door keep the equipment safe in outdoor installation.

The cabinet is placed on a plinth or supports on an open site, next to buildings, along routes and at facilities where a free-standing control or metering post is needed. This format is convenient because it holds more equipment than small wall-mounted boxes but remains a compact floor-standing unit with no need for a separate room. If necessary, the configuration is supplemented with heating, ventilation, a thermostat or a canopy to order.

Where it is used:

• metering and commercial measurement nodes at utility and power facilities;
• automation and I&C cabinets at industrial sites;
• control posts for lighting and utility systems;
• telecommunication and low-current equipment at linear facilities;
• distribution panels for outdoor electrical installations;
• security and dispatching system equipment on the territory of enterprises.
