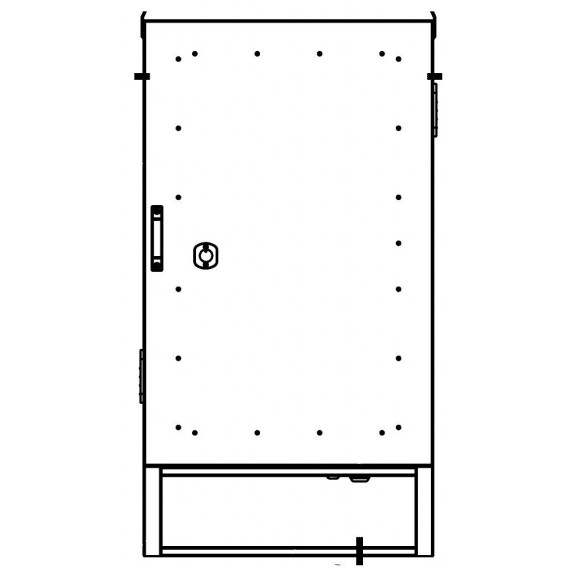

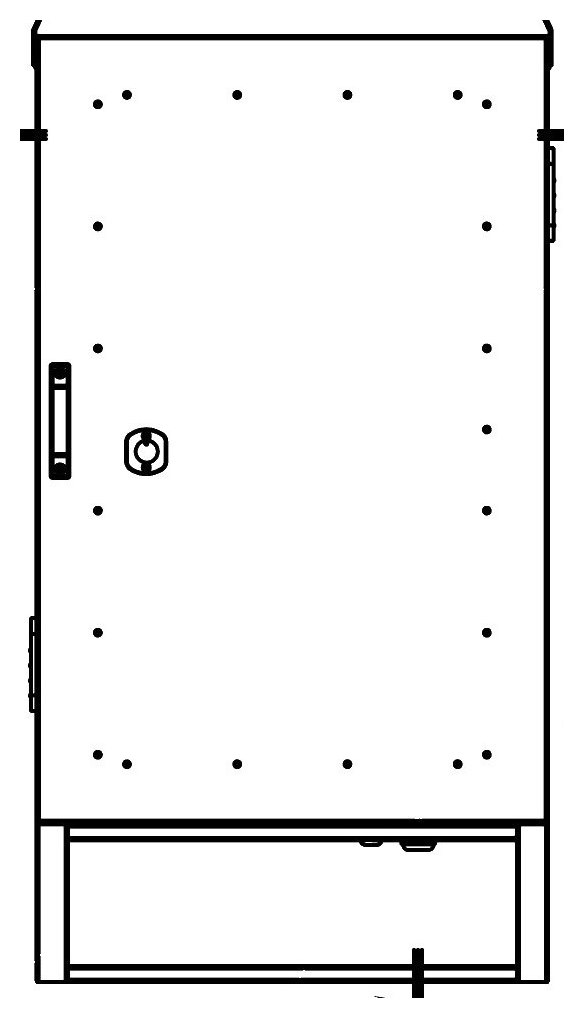

Sfera ShU 1000×650×500 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1000×650×500 mm allow a mounting panel or several DIN rails with a total length of about 1,5–2 m to be placed inside the cabinet, which corresponds to 2–3 rows of modular equipment – circuit breakers, RCDs, contactors, terminal blocks and metering devices. This volume is enough for a medium-power service-entrance and distribution node, a process automation panel, or a controller with a power supply and auxiliary relays.

The cabinet is installed on open sites, along utility routes, at gates and entrances, next to pumping stations and other equipment requiring local control. Floor installation on a plinth or supports simplifies servicing without additional structures, and the IP54 protection rating and insulation ensure operation in outdoor conditions; if necessary, the configuration is supplemented with heating, ventilation, a thermostat or a canopy to order.

Where it is used:

• main distribution panels at utility and landscaping facilities;
• automation nodes of pumping stations and water supply systems;
• control cabinets for outdoor and architectural lighting;
• distribution points at construction sites;
• control panels for barriers and gates at entrance groups;
• auxiliary cabinets for instrumentation at industrial facilities.
