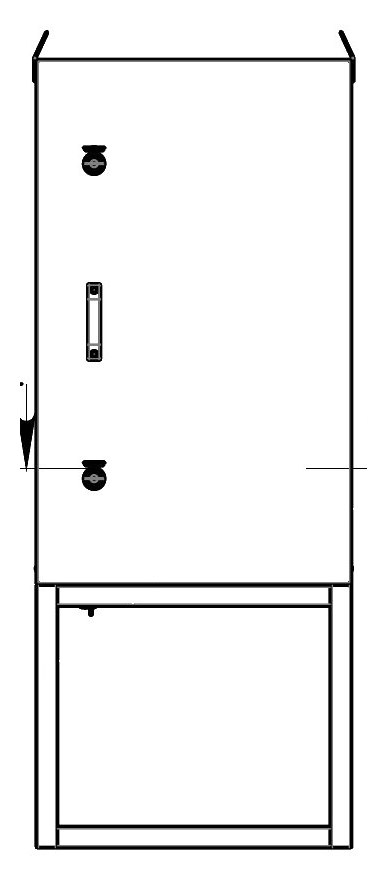

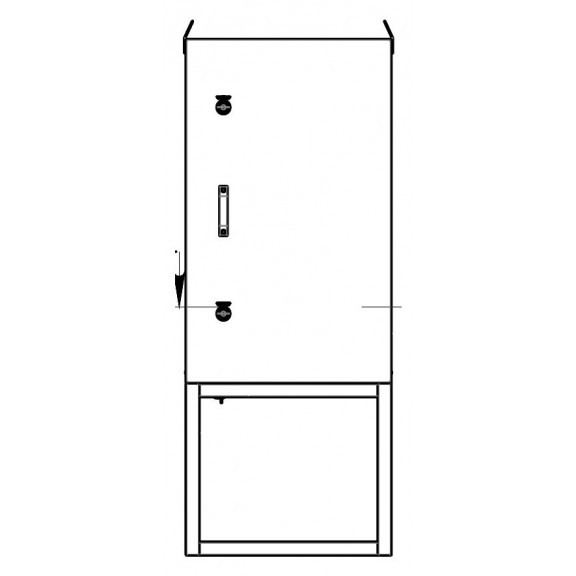

Sfera ShU 1000×600×400 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1000×600×400 mm cabinet holds a mounting panel or DIN rail of 24–36 modules, which makes it possible to assemble a metering panel with circuit breakers, a meter, RCDs and terminal blocks, or a compact control node with a controller and several starters. The depth of 400 mm gives room for routing cables and installing devices with protruding elements, and the height of 1000 mm for vertical placement of several groups of equipment.

This format is placed on a plinth or supports outdoors, where a separate electrical room cannot be set up, and the basic configuration with a gasketed door and cable glands covers protection from dust and moisture. Heating, ventilation, thermostat, canopy or inspection window options are added to order for specific operating conditions.

Where it is used:

• electricity metering points at a building service entrance or at the boundary of balance-sheet responsibility;
• automation and control panels for pumping stations, valves and gates;
• distribution points for outdoor lighting of territories and car parks;
• I&C cabinets on pipelines and process sites;
• housing communication and telemechanics equipment on posts and masts;
• main distribution boards for temporary power supply of construction sites.
