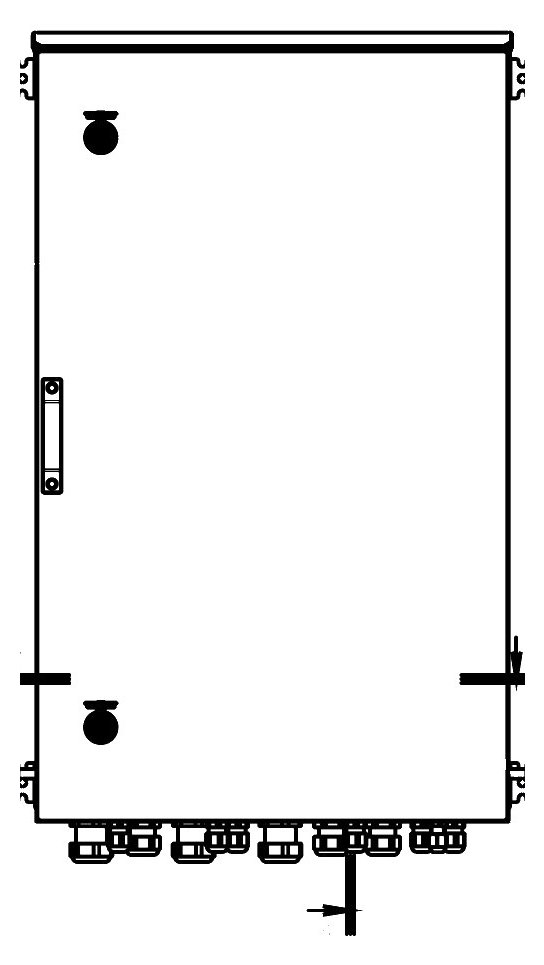

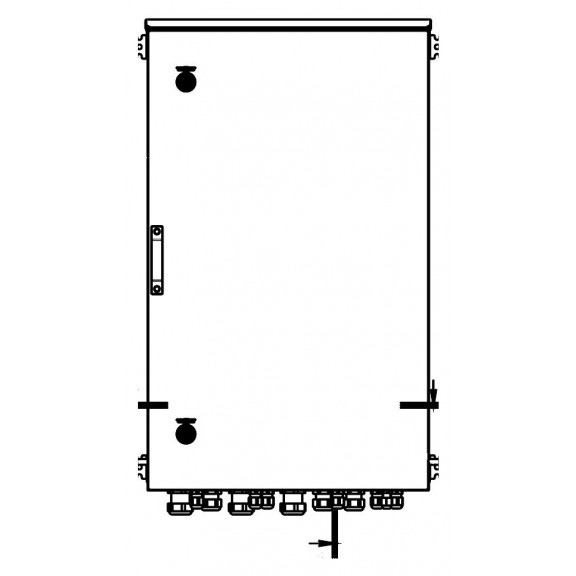

Sfera ShU 1000×600×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1000×600×300 mm cabinet makes it possible to house circuit breakers, electricity metering points, terminal blocks, contactors and other low-voltage equipment on a mounting panel and DIN rail. This size is usually enough for a local distribution or metering node serving one facility or section of a network, without having to allocate a separate room for the equipment.

The wall mounting and the insulated body make the cabinet convenient to install on building walls, posts, steel structures and fences – where compactness and protection of the electrics from precipitation, dust and humidity changes matter. The cable glands and the gasketed door simplify cable entry installation and maintenance without breaking the seal of the body.

Where it is used:

• electricity metering points on building facades and posts;
• distribution points of outdoor lighting;
• housing automation of ventilation systems and pumping stations;
• control panels at communication and telecommunication facilities;
• electrical equipment at construction and industrial sites;
• switching points of utility networks outside buildings.
