Sfera ShU 1000×1800×700 IP54 cabinet

Name: Sfera ShU 1000×1800×700 IP54 cabinet
Brand: Сфера
SKU: 1734

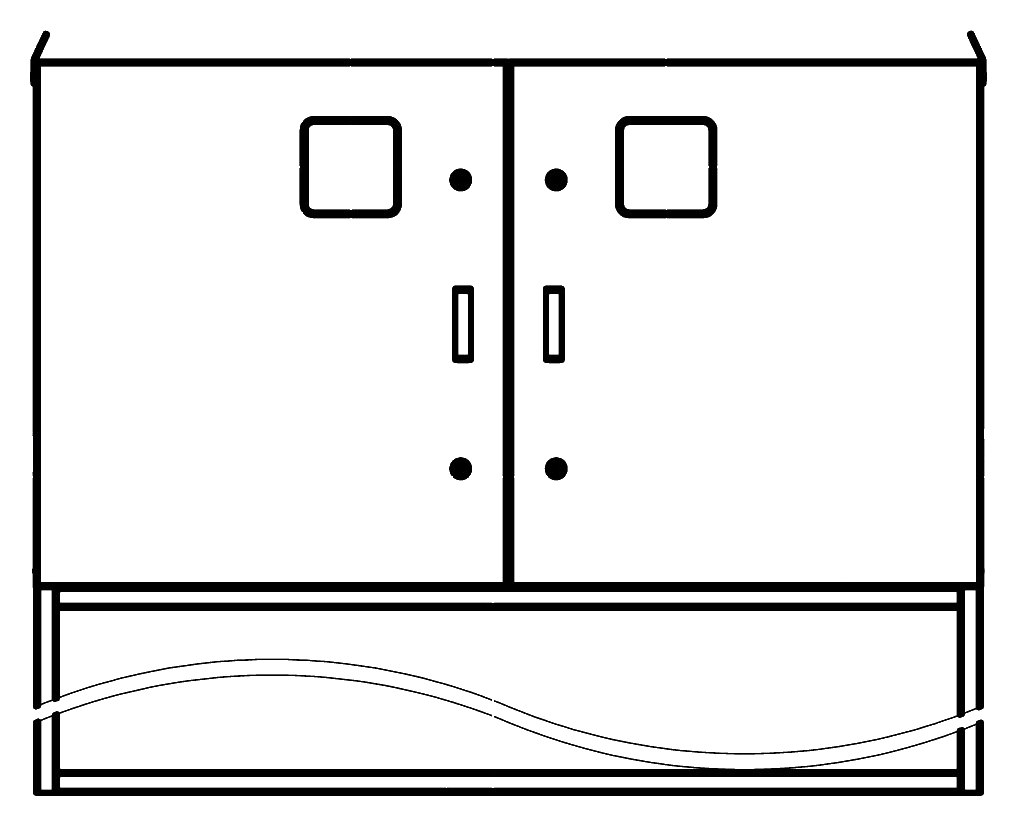

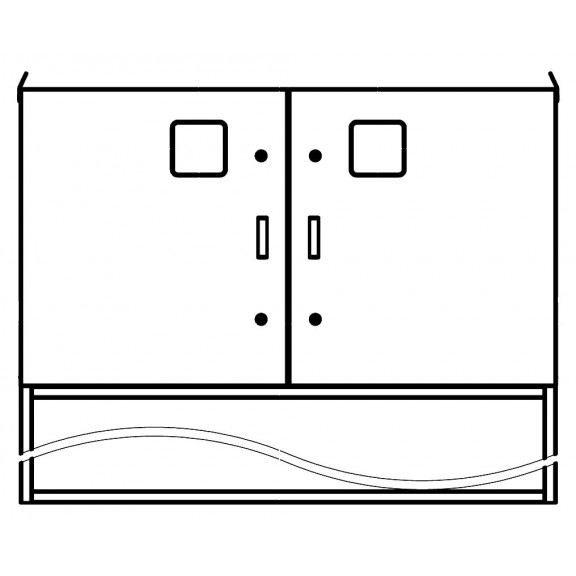

Sfera ShU 1000×1800×700 IP54 cabinet Photo 1

Characteristics

The ShU78 floor-standing outdoor cabinet with external dimensions of 1000×1800×700 mm and protection rating IP54 is designed to house large sets of electrical and low-current equipment – service-entrance devices, automation, metering and communication nodes. The wide body, 1800 mm wide, gives enough room for several mounting panels or DIN rails and convenient maintenance without dismantling neighbouring units. Mineral wool insulation 50 mm thick and a sealed body allow the cabinet to be installed on open sites and in conditions of temperature changes.

Catalog download

Description

Part number (design documentation code)	ShU78
Overall dimensions (height × width × depth), mm	1000×1800×700
Type	Insulated outdoor cabinet (ShU)
Body material	Galvanised steel
Thermal insulation material	Mineral wool (50 mm thick)
Degree of protection	IP54
Mounting	Floor-standing

Equipment

Galvanised steel body with polymer powder coating
Thermal insulation – mineral wool 50 mm
Door with a gasket around the perimeter and a lock
Mounting panel / DIN rail
Cable glands
Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The ShU78 body, with an internal width designed for mounting several panels or DIN rail sections in a row and a depth of 700 mm, is suitable for installing large main distribution devices, power breakers, electricity metering points, switching equipment and low-current communication equipment in one body. The height of 1000 mm and floor installation on a plinth or supports provide convenient access to the mounting panel over its whole area and allow equipment to be placed on several levels.

This format is in demand where a free-standing outdoor cabinet of increased width is needed to combine several functional nodes in a single sealed enclosure; the basic configuration includes a door with a gasket and lock, a mounting panel or DIN rail and cable glands, while heating, ventilation, a thermostat, a canopy and an inspection window are supplied to order.

Where it is used:

electricity metering and commercial metering points at the service entrances of buildings and structures;
main distribution boards for outdoor installation at capital construction facilities;
automation and control cabinets for utility systems on open sites;
housing low-current and communication equipment together with the power part in one body;
distribution points on the territories of industrial and municipal facilities;
equipment of outdoor lighting and power supply systems for linear facilities.
