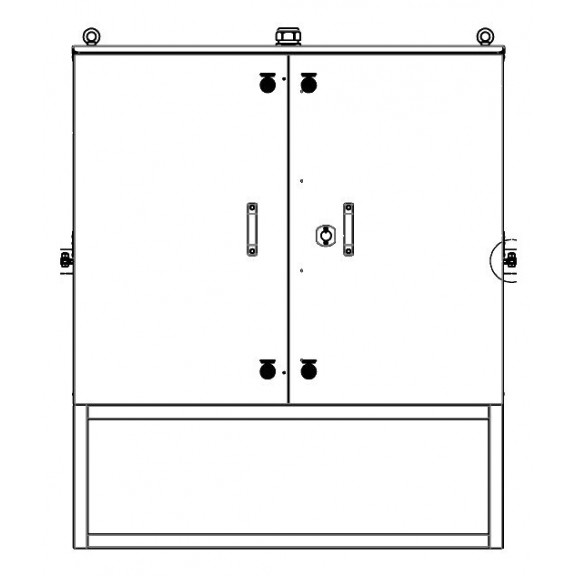

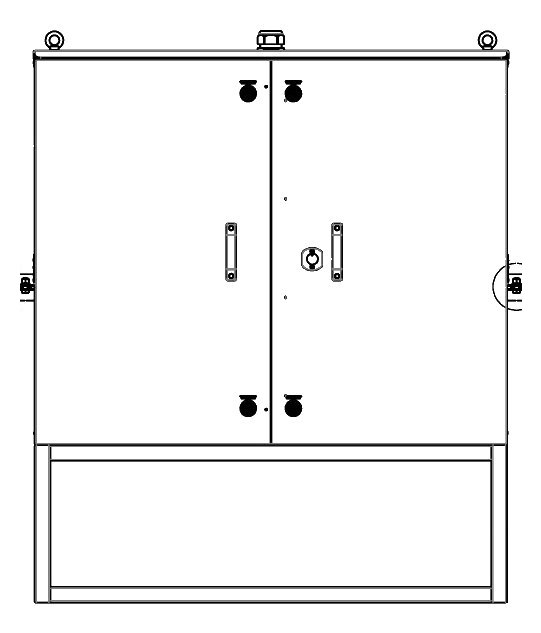

Sfera ShU 1000×1200×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Thermal insulation – mineral wool 50 mm
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The body, 1000 mm high and 1200 mm wide with a depth of 600 mm, holds several rows of modular equipment on a DIN rail and mounting panel: circuit breakers, contactors, relays, metering devices, terminal blocks and cable entries. This volume makes it possible to assemble distribution panels and automation panels with room for additional modules without moving up to a larger size.

Mineral wool thermal insulation 50 mm and IP54 protection make the cabinet suitable for operation in the open on a street, industrial site or infrastructure facility without additional shelter. The wall-mounted method is convenient when ground space is limited – the cabinet is fixed to a building wall, post or steel structure, and the compact depth of 600 mm minimises the projection of the structure into aisles and technical corridors.

Where it is used:

• distribution panels of low-voltage networks at industrial sites;
• automation cabinets for ventilation and water supply systems at utility facilities;
• electricity metering nodes at transformer substations and building service entrances;
• control cabinets for outdoor and architectural lighting;
• housing communication and telemechanics equipment at linear facilities;
• automation panels at production and warehouse complexes.
