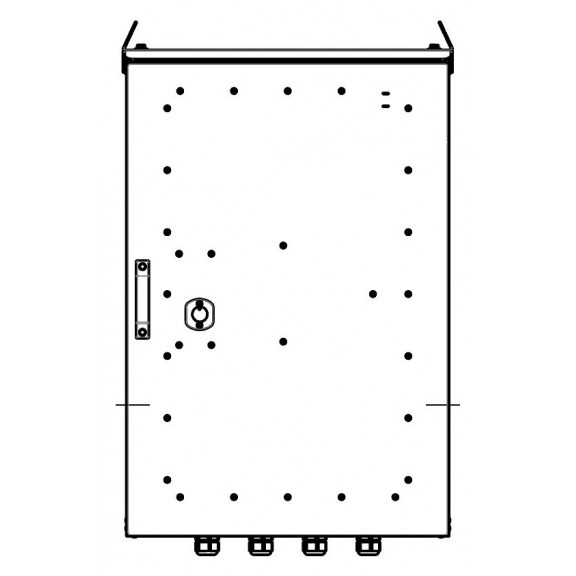

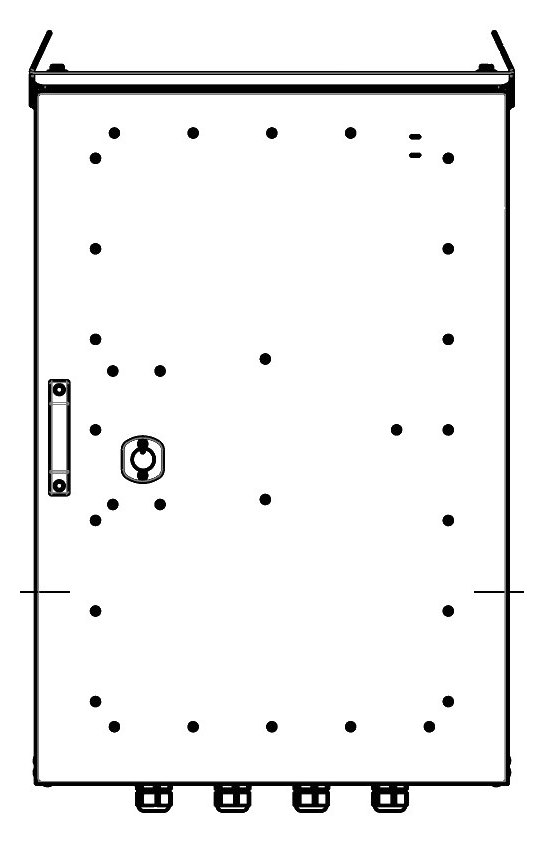

Sfera ShNU 900×600×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The ShNU 900×600×300 cabinet holds modular equipment on a DIN rail and mounting panel: circuit breakers, meters, contactors, terminal blocks and, if necessary, small metering panels or communication nodes. The width of 600 mm and depth of 300 mm allow components to be arranged in several rows with convenient access for maintenance, and the cable glands ensure organised entry of cable lines without breaking the seal of the body.

The wall mounting and IP54 protection rating make this version convenient for installation on building walls, posts and steel structures in the open or under a canopy, where protection from dust and splashes is important without additional insulation. This format is used where a compact outdoor body is needed for distributing loads or metering energy resources without housing heat-generating equipment.

Where it is used:

• electricity metering points at service entrances of residential and commercial buildings;
• distribution panels of street lighting;
• automation cabinets for video surveillance and communication systems;
• housing equipment on power line poles and transformer substations;
• control panels for utility systems at industrial sites;
• switching nodes at road and urban infrastructure facilities.
