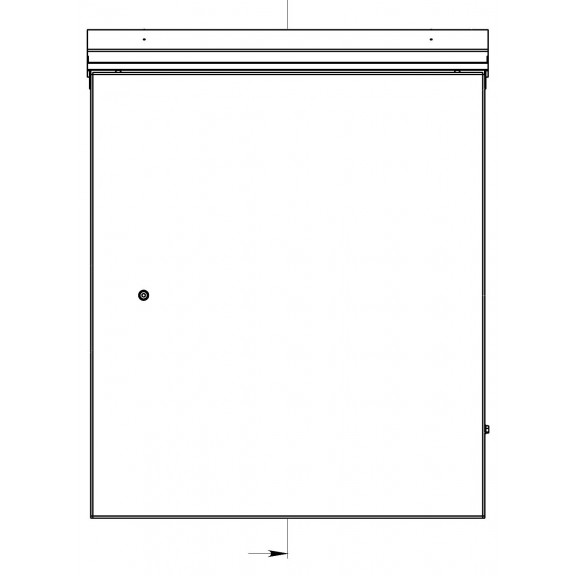

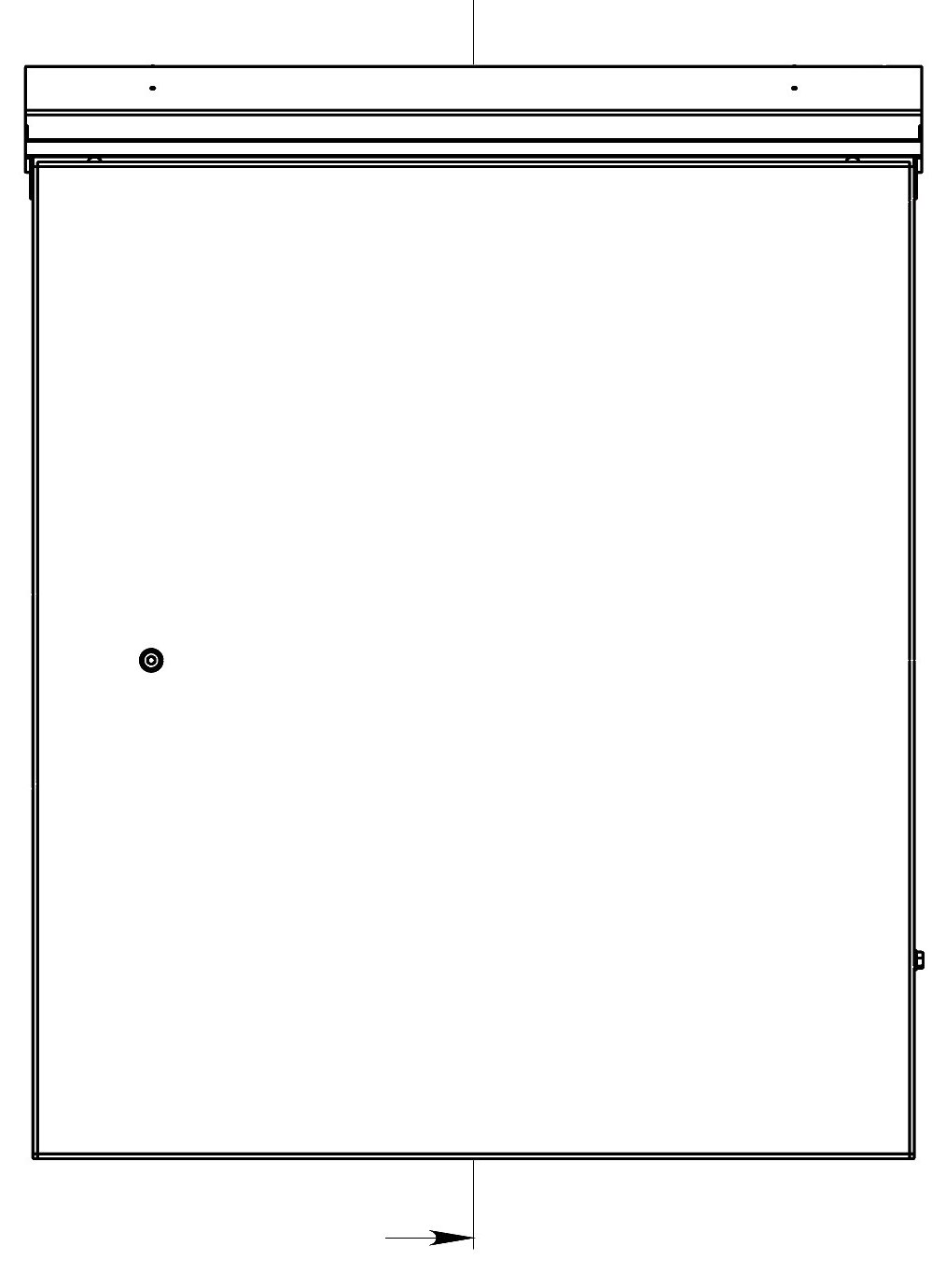

Sfera ShNU 700×600×250 IP65 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 700×600×250 mm body makes it possible to house medium-volume metering and distribution equipment: electricity meters, circuit breakers, RCDs, terminal blocks, small controllers and telemechanics devices. The mounting panel and DIN rail make it possible to assemble several modular devices, and the cable glands provide organised cable entry and exit without breaking the seal of the body.

The IP65 protection rating and the wall mounting make the cabinet convenient to install on open sites, posts, building walls and other structures where compactness and the absence of heating matter. This version is used where the equipment does not need insulation but must be protected from dust, precipitation and direct exposure to the environment.

Where it is used:

• electricity metering points on posts and building facades;
• distribution points of low-voltage networks;
• outdoor lighting automation cabinets;
• housing communication and telemechanics equipment at infrastructure facilities;
• switching assemblies on the territories of industrial and municipal facilities;
• installing instrumentation on open sites.
