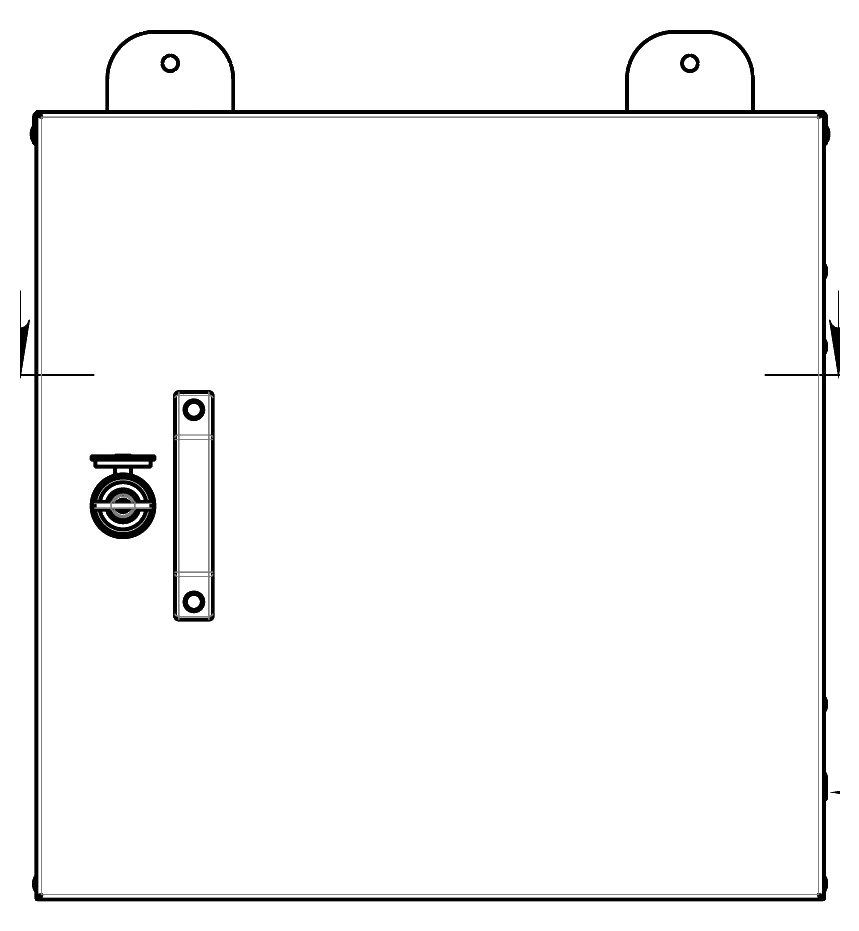

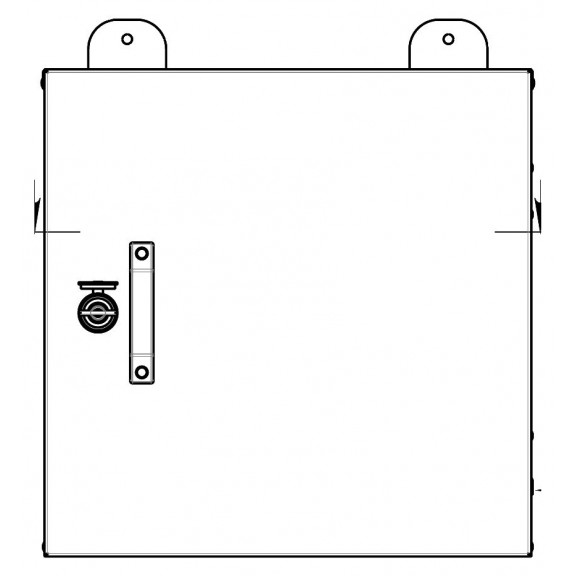

Sfera ShNU 500×500×200 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

With external dimensions of 500×500×200 mm, a compact set of equipment fits on the mounting panel or DIN rail: several automatic breakers, RCDs, a small meter or relay, terminal blocks and cable glands for cable entry. The depth of 200 mm allows the devices to be placed in one row without tightly crowding the wires, and the door with a gasket and lock provides basic protection from dust and moisture to class IP54.

The format is convenient where a small node is needed outdoors or in an unheated room – next to a cable entry, a lighting pole or a panel close to the consumer. Thanks to the small size and weight, the cabinet is easily fixed to a wall or structure, does not require a separate room, and if necessary is supplemented with heating, ventilation or thermostat options to order.

Where it is used:

• electricity metering point at the service entrance of a private house or facility;
• control panel for outdoor lighting of a pole or section;
• switching box for video surveillance and low-current lines;
• remote automation node at country and garden plots;
• junction box at communication and telecommunication facilities;
• small protection panel for a pumping station or ventilation unit.
