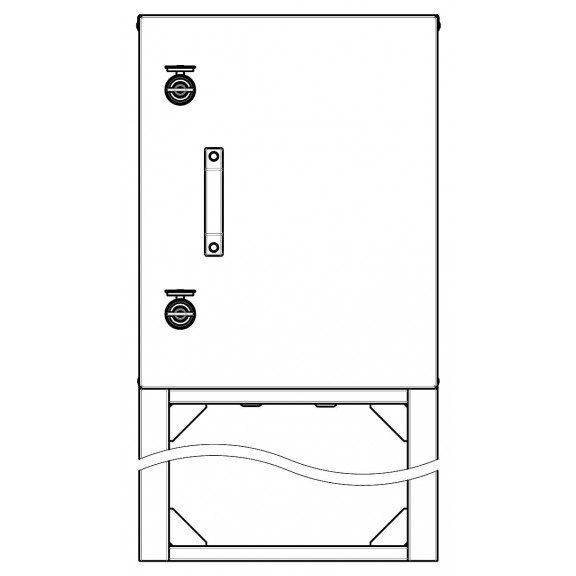

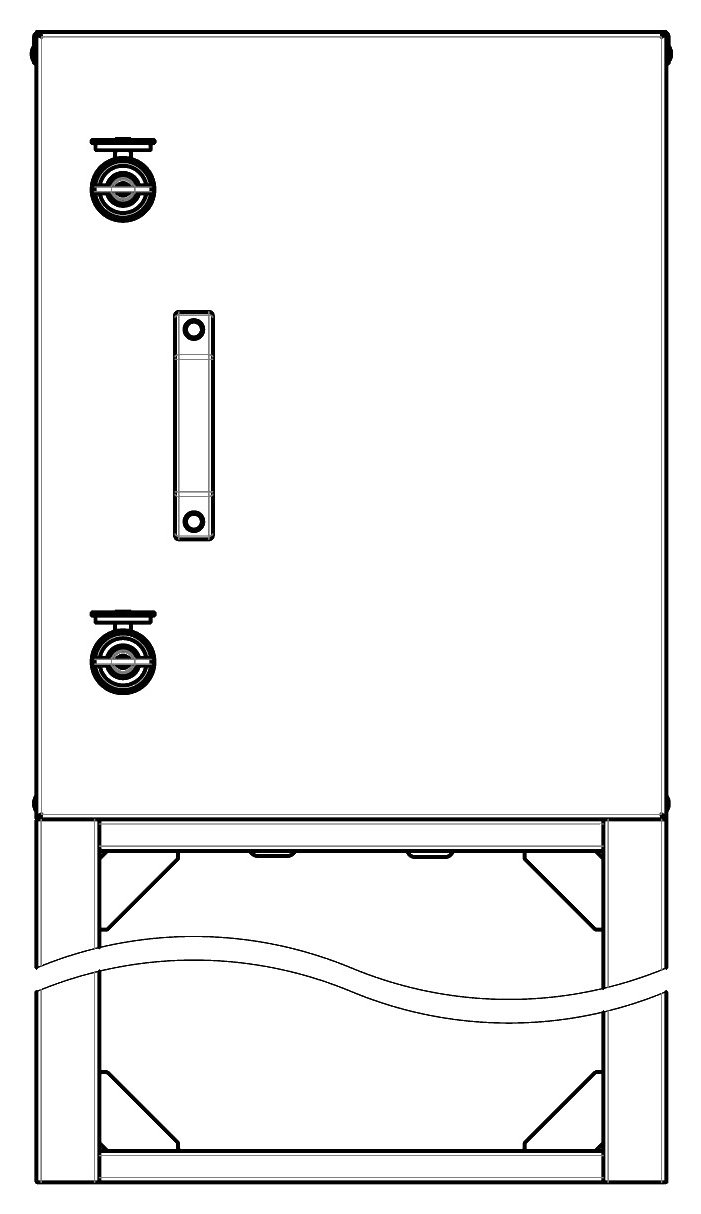

Sfera ShNU 500×400×200 IP65 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 500×400×200 mm allow a small set of circuit breakers, terminal rows, a meter or controller on a DIN rail, and a compact cable switching node through glands to be placed inside the body. This volume is enough for one or two functional nodes without a reserve for large additional equipment, which makes the cabinet a solution for local tasks rather than for a full distribution panel.

The galvanised body with polymer powder coating and a door gasket protects against dust and moisture in open-air operation, and the wall mounting makes it possible to install on a pole, post, building wall or steel structure without a foundation. The small size and weight simplify installation in tight conditions and allow the cabinet to be used where space for equipment is limited.

Where it is used:

• electricity metering point on a post or facade;
• junction box for outdoor lighting;
• control panel for a small pump or fan;
• housing a telemechanics system controller or modem on site;
• main distribution board for temporary or additional power supply;
• protecting terminal connections of cable lines on open sites.
