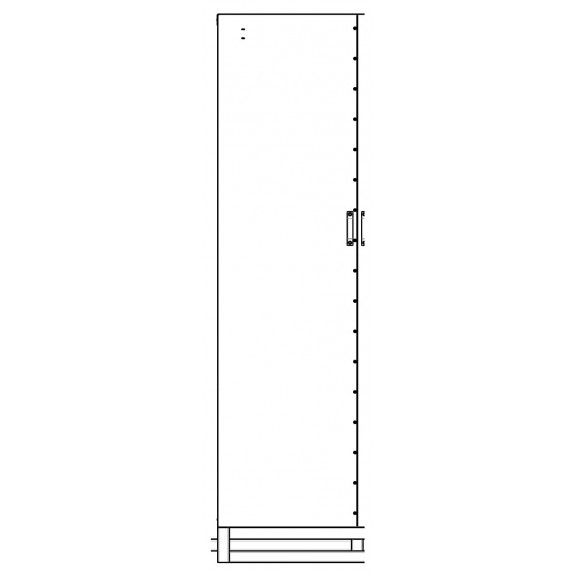

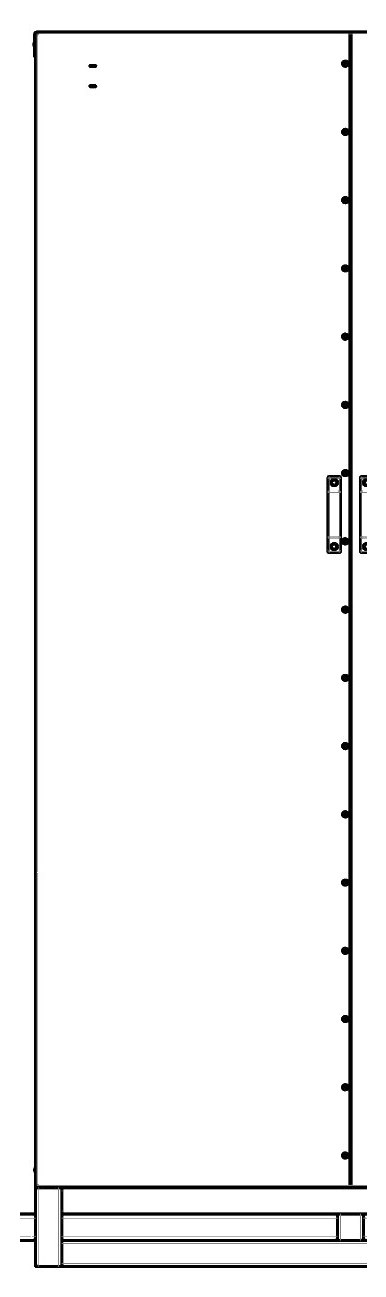

Sfera ShNU 2200×1200×800 IP65 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The external dimensions of 2200×1200×800 mm allow several rows of circuit breakers, power panels, metering devices, controllers and switching equipment to be housed in one body, separated by mounting panels and DIN rails. This format suits facilities where several functional nodes need to be combined in a single protected body, without installing several separate smaller cabinets.

The wall mounting and IP65 protection rating make the cabinet convenient to install on building walls, posts and steel structures on open sites without a separate foundation. The cable glands provide sealed cable entry, and the gasket around the door perimeter protects the contents from dust and moisture when operating without additional heating.

Where it is used:

• combined electricity metering and distribution nodes at industrial sites;
• power panels and automation at outdoor and architectural lighting facilities;
• housing communication and telemechanics system equipment in open areas;
• control cabinets for pumping stations and utility networks;
• distribution nodes at construction sites and temporary facilities;
• housing instrumentation on production territories.
