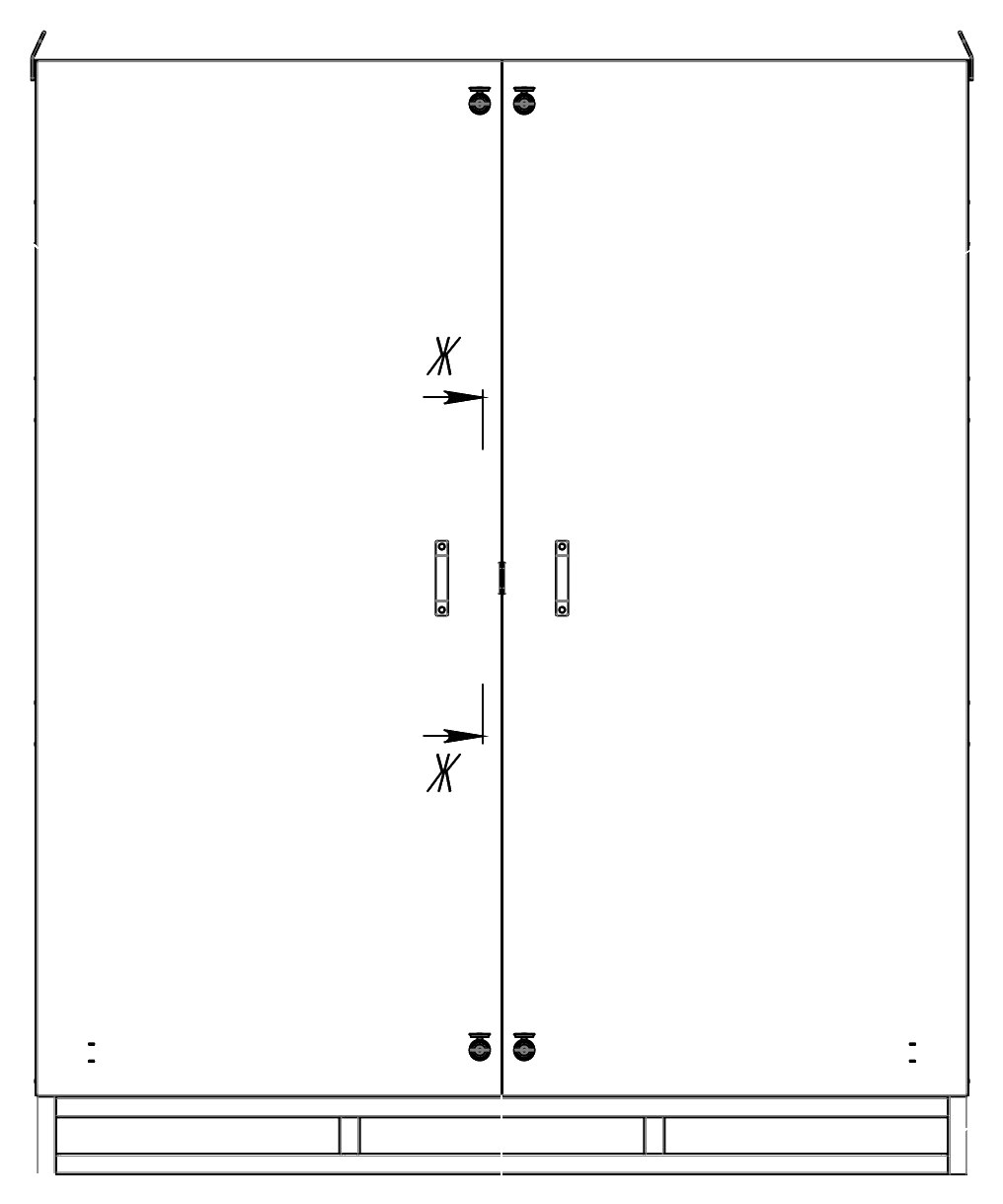

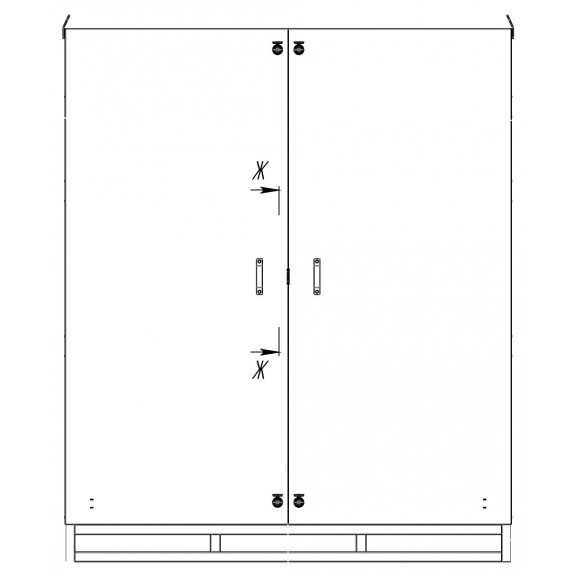

Sfera ShNU 2000×1800×1000 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The ShNU620 cabinet allows several DIN rails and mounting panels to be installed in several rows in height and width, and the depth of 1000 mm makes it possible to place equipment in two rows with an aisle for maintenance. Such a cabinet holds distribution panels with a large number of breakers and terminal blocks, power main distribution devices, sets of low-current equipment or combined assemblies of several functional sections.

The uninsulated floor-standing cabinet format is convenient where the equipment does not require temperature maintenance and the installation is done on a prepared base – a plinth, frame or concrete pad. The cable glands and the gasketed door with a lock provide basic protection from precipitation and dust in open-air operation, and additional heating, ventilation, a thermostat, a canopy or an inspection window are supplied to order.

Where it is used:

• power supply of large industrial and warehouse facilities with a large number of connections;
• housing main distribution devices at substations and in switchgear;
• setting up metering nodes and commercial panels for apartment and commercial buildings;
• housing communication and dispatching equipment at extended linear facilities;
• prefabricated distribution points for construction sites and temporary power supply;
• installing complete automation panels at utility facilities and utility networks.
