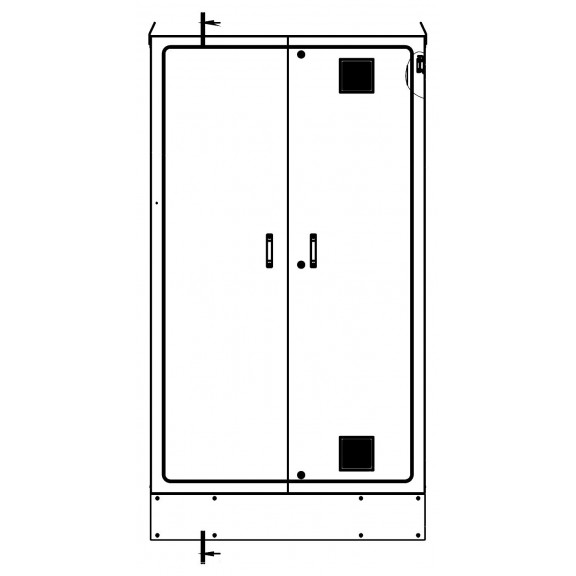

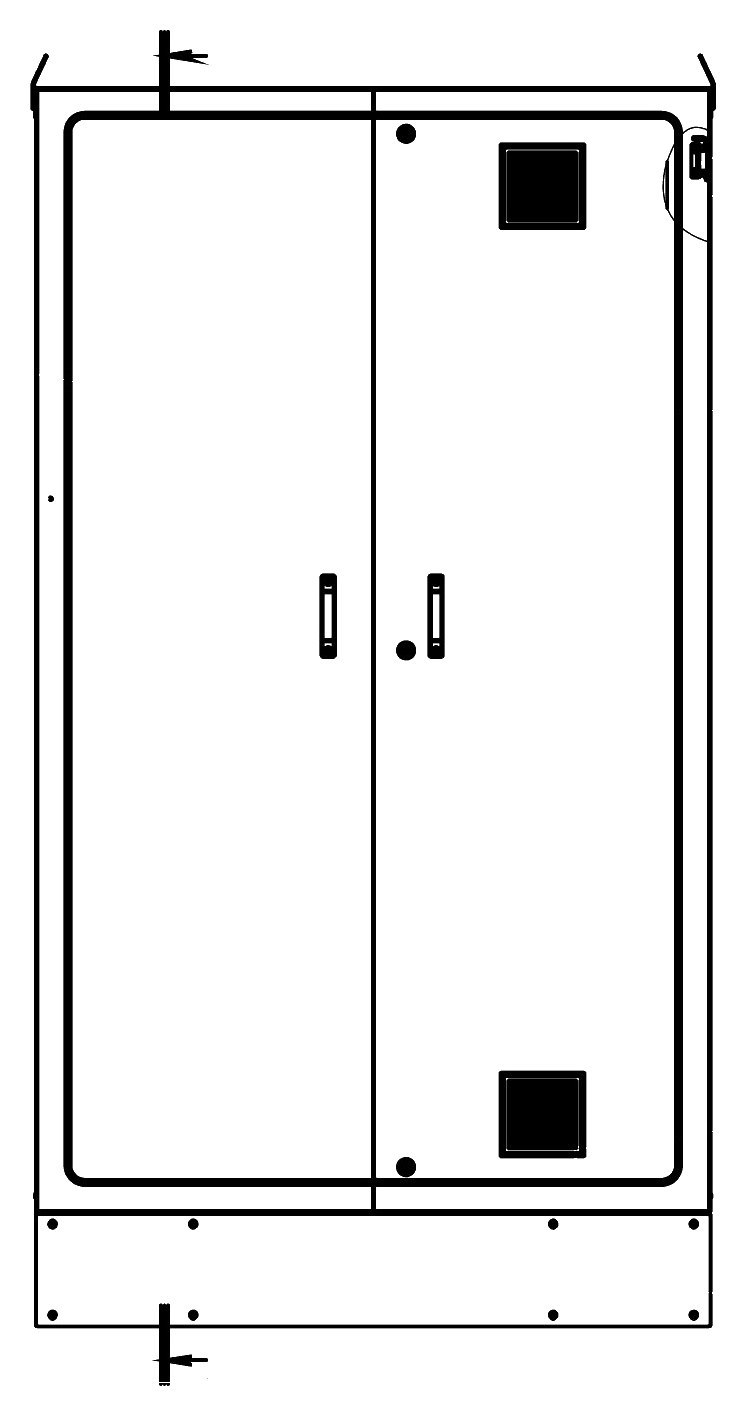

Sfera ShNU 2000×1200×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 2000×1200×600 mm cabinet allows up to several sections of mounting panels or DIN rails to be placed in one or two rows across the width, as well as large devices – main breakers, meters, terminal cabinets, automation units. The width of 1200 mm makes it possible to arrange equipment in sections, the depth of 600 mm to install devices with protruding elements and leave room for cable runs. The basic configuration includes a door with a gasket and lock, a mounting panel or DIN rail, and cable glands for cable entry; heating, ventilation, a thermostat, a canopy and an inspection window are supplied to order.

Floor installation on a plinth or supports makes the cabinet a convenient solution where a free-standing distribution point outdoors is required, and the absence of insulation allows operation in conditions without sharp temperature loads. This size suits facilities with a large number of switched lines and equipment that does not fit into compact wall-mounted cabinets.

Where it is used:

• distribution points of electrical networks for group metering and switching of several lines;
• automation nodes of outdoor facilities – pumping stations, sewage pumping stations, wastewater treatment plants;
• lighting control panels for extended territories and car parks;
• housing main distribution devices at industrial sites;
• telemechanics and dispatching cabinets for large utility systems;
• prefabricated metering and switching nodes at utility and power facilities.
