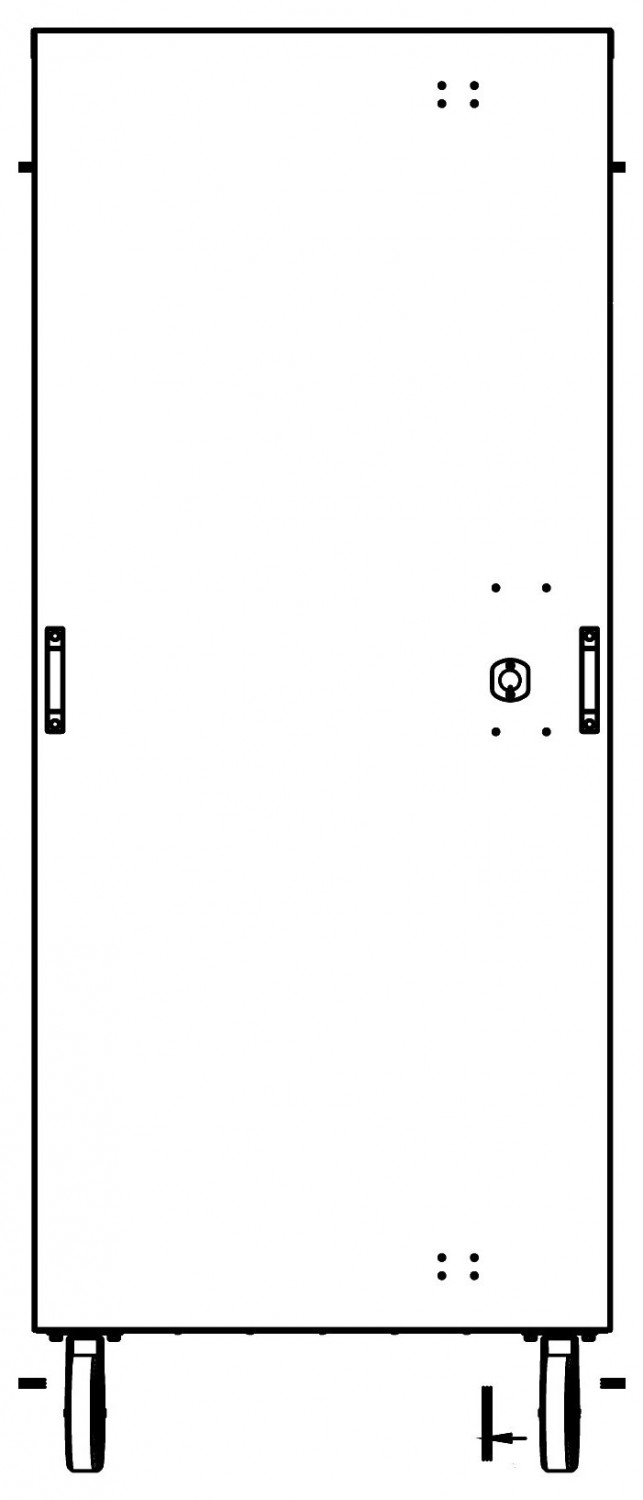

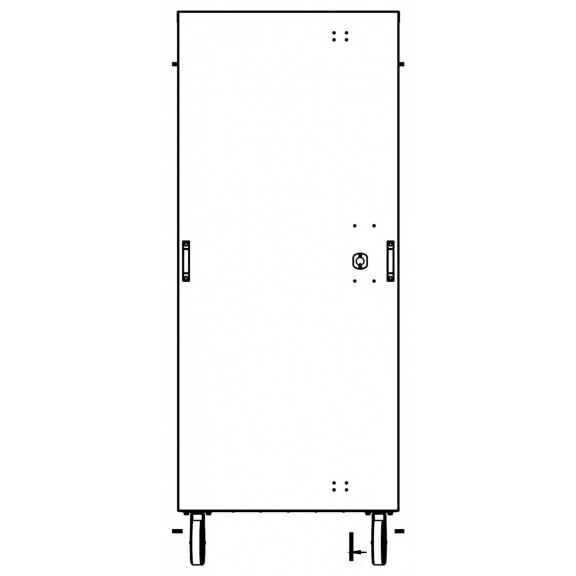

Sfera ShNU 1800×800×700 IP65 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Mounting hardware kit

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The dimensions of 1800×800×700 mm allow several rows of circuit breakers, contactors, relays, power supplies and terminal assemblies, as well as cable organisers and entry devices, to be placed in the cabinet. The large body depth gives room for routing wire harnesses and installing additional equipment on the mounting panel without violating maintenance and access requirements.

Galvanised steel with polymer powder coating and protection rating IP65 allow the cabinet to be installed on open sites, overpasses, posts and exterior walls of buildings without additional shelter. The gasket around the door perimeter and cable glands keep the electrical equipment safe from precipitation and dust, and the wall mounting simplifies installation on existing load-bearing structures without major works.

Where it is used:

• distribution and metering panels at outdoor power supply sites;
• automation and switching nodes at outdoor and street lighting facilities;
• control cabinets for pumping stations and water supply systems;
• housing communication and telemetry equipment at open facilities;
• auxiliary-service panels at transformer substations and distribution points;
• cabinets for video surveillance and security alarm systems on territory perimeters.
