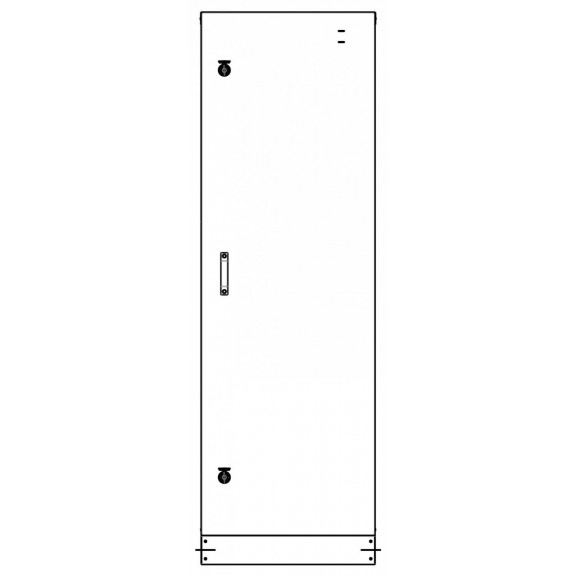

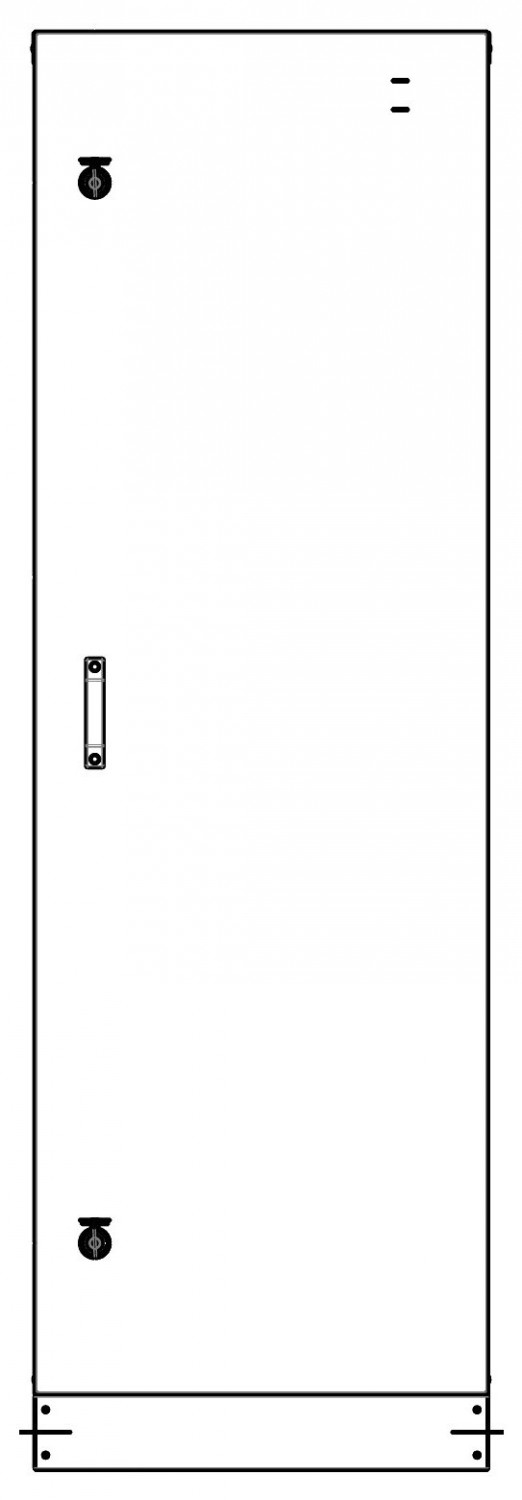

Sfera ShNU 1800×600×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

With a width and depth of 600×600 mm and a height of 1800 mm, the cabinet can hold one or two full-size mounting panels or DIN rails in several rows in height, which makes it possible to assemble a distribution panel with 2–4 rows of breakers, a metering meter, a terminal block and a main device in one body. The cable glands and the door with a gasket provide basic protection of the installed equipment from dust and moisture in outdoor placement.

The floor-standing body format on a plinth or supports is convenient where the equipment does not fit into a smaller wall-mounted cabinet and installation inside a building is impossible or impractical. For cold-season operation or additional protection, options are available to order – heating, ventilation, thermostat, canopy, inspection window.

Where it is used:

• electricity metering and distribution at service entrances of buildings and sites;
• housing automation panels at production and warehouse complexes;
• switching equipment at utility facilities and utility networks;
• distribution points at construction sites;
• lighting and ventilation control cabinets for outdoor facilities;
• metering and protection nodes at petrol station and car park territories.
