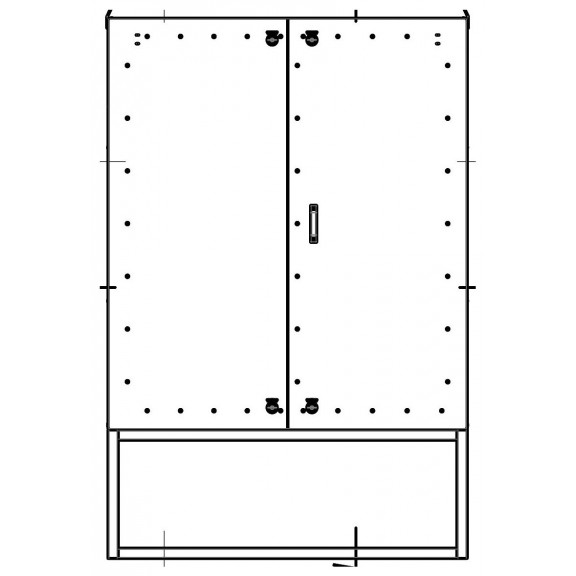

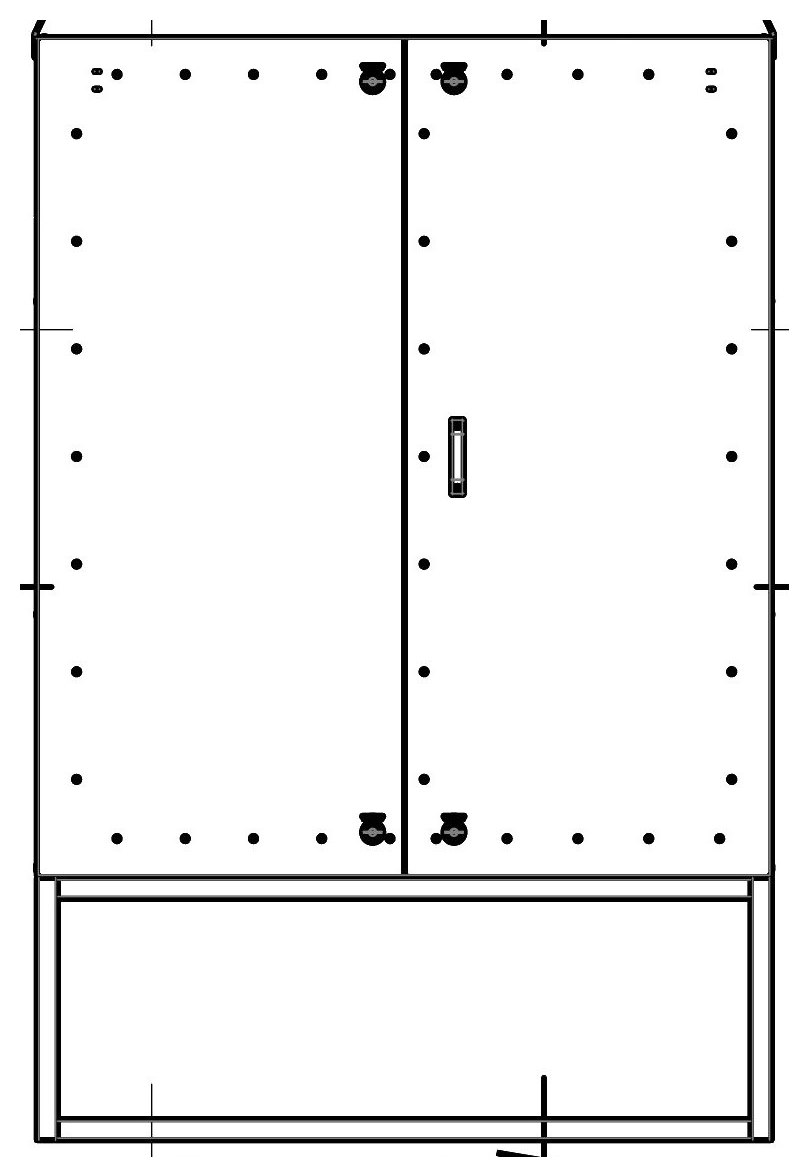

Sfera ShNU 1600×1400×600 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1600×1400×600 mm cabinet allows a mounting panel and DIN rails to be placed in several rows, which gives enough modular places for group service entrance, distribution breakers, meters and terminal assemblies in one body. The width and depth of 1400×600 mm make it possible to arrange equipment by sections, and the height of 1600 mm to install devices on several tiers without crowding during maintenance.

The basic configuration includes a door with a gasket and lock, a mounting panel or DIN rail, and cable glands for cable entries; heating, ventilation, a thermostat, a canopy and an inspection window are supplied to order. Floor installation on a plinth or supports and the absence of insulation make the cabinet a convenient solution for housing a large set of equipment on an open site without erecting a separate structure.

Where it is used:

• low-voltage distribution points at outdoor power supply facilities;
• metering and commercial metering points for electricity together with service-entrance automation;
• outdoor lighting control cabinets with group lines;
• housing dispatching and switching equipment at production sites;
• combined panels for several consumers at construction and temporary sites;
• automation and telemechanics system equipment on open process sites.
